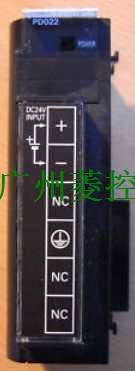

OMRON Power supply Module CJ1W-PD022
Brand: OMRON.
Product Name: Power supply Unit.
Model: CJ1W-PD022.
Input range: 21.6 to 26.4 VDC.
CJ1W-PD022 Power consumption: 35 W max.
Output capacity at 5VDC: 2.0 A.
Output capacity at 24VDC: 0.4 A.
Max. output power: 16.6 W.
Features: -.
Width: 27 mm.
Power supply Unit Standards: UC1, CE.
->

OMRON Power supply Module CJ1W-PD025
Brand: OMRON.
Product Name: Power supply Module.
Model: CJ1W-PD025.
CJ1W-PD025 Input range: 19.2 to 28.8 VDC.
Power consumption: 50 W max.
Output capacity at 5VDC: 5.0 A.
Output capacity at 24VDC: 0.8 A.
Power supply Module Max. output power: 25 W.
Features: -.
Power supply Module Width: 60 mm.
Standards: C1, N, L, CE.
->

OMRON Power supply Module CJ1W-PA202
Brand: OMRON.
Product Name: Power supply Module.
Model: CJ1W-PA202.
CJ1W-PA202 Input range: 85 to 264 VAC, 47 to 63 Hz.
Power consumption: 50 VA max.
Output capacity at 5VDC: 2.8 A.
Output capacity at 24VDC: 0.4 A.
Max. output power: 14 W.
Features: -.
Power supply Module Width: 45 mm.
Standards: C1, N, L, CE.
->

OMRON Power supply Module CJ1W-PA205R
Brand: OMRON.
Product Name: Power supply Unit.
Model: CJ1W-PA205R.
CJ1W-PA205R Input range: 85 to 264 VAC, 47 to 63 Hz.
Power consumption: 100 VA max.
Output capacity at 5VDC: 5.0 A.
Output capacity at 24VDC: 0.8 A.
Max. output power: 25 W.
Features: Run output (SPST relay).
Power supply Unit Width: 80 mm.
Standards: C1, N, L, CE.
->

OMRON Power supply Module CJ1W-PA205C
Brand: OMRON.
Product Name: Power supply Unit.
Model: CJ1W-PA205C.
CJ1W-PA205R Input range: 85 to 264 VAC, 47 to 63 Hz.
Power consumption: 100 VA max.
Output capacity at 5VDC: 5.0 A.
Output capacity at 24VDC: 0.8 A.
Max. output power: 25 W.
Features: Maintenance status display.
Power supply Unit Width: 80 mm.
Standards: C1, N, L, CE.
->

OMRON I/O control unit CJ1W-IC101
Brand: OMRON.
Product Name: I/O control unit.
I/O control unit Model: CJ1W-IC101.
Description: Required unit on CPU ‘rack' to connect I/O expansions.
OMRON CJ1W IC101 Width Length: 20 mm.

OMRON I/O interface unit CJ1W-II101
Brand: OMRON.
Product Name: I/O interface unit.
Model: CJ1W-II101.
Description: Start unit for each I/O expansion ‘rack’. Requires a power supply unit.
OMRON CJ1W II101 Width Length: 31 mm.

OMRON I/O expansion cable CS1W-CN313
Brand: OMRON.
Product Name: I/O expansion cable.
Model: CS1W-CN313.
Description: Connects CJ1W-IC101 or -II101 to the next expansion rack’s -II101.
CS1W CN313 cable Width Length: 0.3 M.

OMRON I/O expansion cable CS1W-CN713
Brand: OMRON.
Product Name: I/O expansion cable.
Name&Model: expansion cable CS1W-CN713.
Description: Connects CJ1W-IC101 or -II101 to the next expansion rack’s -II101.
CS1W CN713 Width Length: 0.7 M.

OMRON I/O expansion cable CS1W-CN223
Brand: OMRON.
Product Name: I/O expansion cable.
Model: CS1W-CN223.
CS1W-CN223 Description: Connects CJ1W-IC101 or -II101 to the next expansion rack’s -II101.
Width Length: 2.0 M.

OMRON I/O expansion cable CS1W-CN323
Brand: OMRON.
Product Name: I/O expansion cable.
Model: CS1W-CN323.
CS1W-CN323 Description: Connects CJ1W-IC101 or -II101 to the next expansion rack’s -II101.
CS1W CN323 Width Length: 3.0 M.

OMRON I/O expansion cable CS1W-CN523
Brand: OMRON.
Product Name: I/O expansion cable.
Model: CS1W-CN523.
Description: Connects CJ1W-IC101 or -II101 to the next expansion rack’s -II101.
CS1W CN523 Width Length: 5.0 M.
