Mennekes Cepex wall mounted receptacle 4137
Product Name:Cepex wall mounted receptacle
Part No.:4137.
Ampere:32A.
Poles:3p.
Voltage:230V.
Earth position: 6h.
Hertz 50-60Hz.
Protection type IP44.
screw terminals.
with labelling field.
cable entry: 1 x M 25 with cable gland at top, 1 x M 25 to be cut out at the bottom, 1 x M 20 to be cut out at the back side, for cables 7 up to 13 mm ?.
Product Name:Cepex wall mounted receptacle
Part No.:4137.
Ampere:32A.
Poles:3p.
Voltage:230V.
Earth position: 6h.
Hertz 50-60Hz.
Protection type IP44.
screw terminals.
with labelling field.
cable entry: 1 x M 25 with cable gland at top, 1 x M 25 to be cut out at the bottom, 1 x M 20 to be cut out at the back side, for cables 7 up to 13 mm ?.
Mennekes Cepex panel mounted receptacle 4237
Product Name:Cepex panel mounted receptacle
Part No.:4237.
Ampere:16A.
Poles:5p.
Voltage:400V.
Earth position: 6h.
Hertz 50-60Hz.
Protection type IP44.
screw terminals.
with labelling field.
suitable for installation in cable ducts and columns.
Product Name:Cepex panel mounted receptacle
Part No.:4237.
Ampere:16A.
Poles:5p.
Voltage:400V.
Earth position: 6h.
Hertz 50-60Hz.
Protection type IP44.
screw terminals.
with labelling field.
suitable for installation in cable ducts and columns.
Mennekes Plug AM-TOP 22737
Product Name:Plug AM-TOP?
Part No.:22737.
Ampere:16A.
Poles:3p.
Voltage:110V.
Earth position:4h.
Hertz 50-60Hz.
Connection technology:screw terminals.
Contact:nickel plated contacts, highly heat resistant contact carrier.
Protection type IP44.
screw terminals.
single part body.
highly heat resistant contact carrier.
nickel plated contacts.
cable gland and sealing.
strain relief and protection against kinking.
Product Name:Plug AM-TOP?
Part No.:22737.
Ampere:16A.
Poles:3p.
Voltage:110V.
Earth position:4h.
Hertz 50-60Hz.
Connection technology:screw terminals.
Contact:nickel plated contacts, highly heat resistant contact carrier.
Protection type IP44.
screw terminals.
single part body.
highly heat resistant contact carrier.
nickel plated contacts.
cable gland and sealing.
strain relief and protection against kinking.
Mennekes Wall mounted inlet 337
Product Name:Wall mounted inlet
Part No.:337.
Ampere:16A.
Poles:4p.
Voltage:500V.
Earth position:7h.
Hertz 50-60Hz.
Connection technology:screw terminals.
Contact:standard.
Protection type IP44.
screw terminals.
enclosure base with stamped recess for quick cutting out.
Product Name:Wall mounted inlet
Part No.:337.
Ampere:16A.
Poles:4p.
Voltage:500V.
Earth position:7h.
Hertz 50-60Hz.
Connection technology:screw terminals.
Contact:standard.
Protection type IP44.
screw terminals.
enclosure base with stamped recess for quick cutting out.

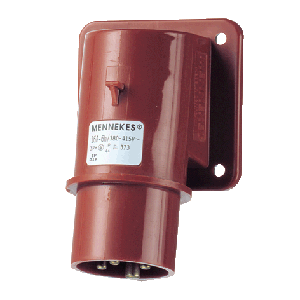

Mennekes Panel mounted inlet 373
Product Name:Panel mounted inlet
Part No.:373.
Ampere:16A.
Poles:4p.
Voltage:400V.
Earth position:6h.
Hertz 50-60Hz.
Connection technology:screw terminals.
Contact:standard.
Protection type IP44.
screw terminals.
Product Name:Panel mounted inlet
Part No.:373.
Ampere:16A.
Poles:4p.
Voltage:400V.
Earth position:6h.
Hertz 50-60Hz.
Connection technology:screw terminals.
Contact:standard.
Protection type IP44.
screw terminals.
Mennekes Panel mounted inlet 837
Product Name:Panel mounted inlet
Part No.:837.
Ampere:16A.
Poles:4p
Voltage:230V.
Earth position:9h.
Hertz 50-60Hz.
Connection technology:screw terminals.
Contact:standard.
Protection type IP44.
screw terminals.
nickel-plated contacts.
a retaining nose to hold the hinged lid of the connector must be provided by the customer in order to ensure satisfactory locking.
Product Name:Panel mounted inlet
Part No.:837.
Ampere:16A.
Poles:4p
Voltage:230V.
Earth position:9h.
Hertz 50-60Hz.
Connection technology:screw terminals.
Contact:standard.
Protection type IP44.
screw terminals.
nickel-plated contacts.
a retaining nose to hold the hinged lid of the connector must be provided by the customer in order to ensure satisfactory locking.
Mennekes Panel mounted inlet 3704
Product Name:Panel mounted inlet
Part No.:3704.
Ampere:63A.
Poles:4p
Voltage:230V.
Earth position:9h.
Hertz 50-60Hz.
Connection technology:screw terminals.
Contact:nickel plated contacts, highly heat resistant contact carrier.
Protection type IP67.
screw terminals.
with highly heat resistant contact carrier.
nickel plated contacts.
a retaining nose to hold the hinged lid of the connector must be provided by the customer in order to ensure satisfactory locking.
Product Name:Panel mounted inlet
Part No.:3704.
Ampere:63A.
Poles:4p
Voltage:230V.
Earth position:9h.
Hertz 50-60Hz.
Connection technology:screw terminals.
Contact:nickel plated contacts, highly heat resistant contact carrier.
Protection type IP67.
screw terminals.
with highly heat resistant contact carrier.
nickel plated contacts.
a retaining nose to hold the hinged lid of the connector must be provided by the customer in order to ensure satisfactory locking.
Mennekes Hanging connector 3778
Product Name:Hanging connector
Part No.:3778.
Ampere:16A.
Poles:5p
Voltage:400V.
Earth position:6h.
Hertz 50-60Hz.
Connection technology:screw terminals.
Contact:highly heat resistant contact carrier.
Protection type IP44.
screw terminals.
with highly heat resistant contact carrier.
cable gland and external cable grip.
hanging clip.
Product Name:Hanging connector
Part No.:3778.
Ampere:16A.
Poles:5p
Voltage:400V.
Earth position:6h.
Hertz 50-60Hz.
Connection technology:screw terminals.
Contact:highly heat resistant contact carrier.
Protection type IP44.
screw terminals.
with highly heat resistant contact carrier.
cable gland and external cable grip.
hanging clip.
Mennekes Name:Receptacle strip 95937
Product Name:Receptacle strip
Part No.:95937.
Fitted with:3 CEE 16A, 4p, >50 - 500V, 100-300 Hz.
Connection/feeder cable:for 1 cable up to 4 x 10mm2.
Enclosure size:410 x 97 mm (H x W).
Protection type: IP44.
pre-wired for installation.
enclosure grey RAL 7035.
enclosure and insert made of AMAPLAST.
hanging clip enclosed.
Product Name:Receptacle strip
Part No.:95937.
Fitted with:3 CEE 16A, 4p, >50 - 500V, 100-300 Hz.
Connection/feeder cable:for 1 cable up to 4 x 10mm2.
Enclosure size:410 x 97 mm (H x W).
Protection type: IP44.
pre-wired for installation.
enclosure grey RAL 7035.
enclosure and insert made of AMAPLAST.
hanging clip enclosed.
Mennekes Panel mounted receptacle 737
Product Name:Panel mounted receptacle
Part No.737.
Ampere :16A.
Poles:7P.
Voltage:230V.
Earth position:9h.
Hertz:50-60 Hz.
Connection technology:Screw terminals.
Contact:nickel plated contacts, highly heat resistant contact carrier.
Protection type:IP44.
screw terminals.
highly heat resistant contact carrier.
nickel plated contacts.
20° inclination.
Product Name:Panel mounted receptacle
Part No.737.
Ampere :16A.
Poles:7P.
Voltage:230V.
Earth position:9h.
Hertz:50-60 Hz.
Connection technology:Screw terminals.
Contact:nickel plated contacts, highly heat resistant contact carrier.
Protection type:IP44.
screw terminals.
highly heat resistant contact carrier.
nickel plated contacts.
20° inclination.
Mennekes Panel mounted receptacle 3775
Product Name:Panel mounted receptacle
Part No.3775.
Ampere :32A.
Poles:7P.
Voltage:230V.
Earth position:9h.
Hertz:50-60 Hz.
Connection technology:Screw terminals.
Contact:nickel plated contacts, highly heat resistant contact carrier.
Protection type:IP67.
screw terminals.
highly heat resistant contact carrier.
nickel plated contacts.
20° inclination.
receptacles are designed for adding an auxiliary contact switch.
Product Name:Panel mounted receptacle
Part No.3775.
Ampere :32A.
Poles:7P.
Voltage:230V.
Earth position:9h.
Hertz:50-60 Hz.
Connection technology:Screw terminals.
Contact:nickel plated contacts, highly heat resistant contact carrier.
Protection type:IP67.
screw terminals.
highly heat resistant contact carrier.
nickel plated contacts.
20° inclination.
receptacles are designed for adding an auxiliary contact switch.
