Mennekes AMAXX receptacle combination 910001
Product Name:AMAXX? receptacle combination
Part No.:910001.
Fitted with:2 SCHUKO? 16A, 230V.
Fusing:1 RCD 25A, 2p, 0.03A.
2 MCB′s 16A, 1p, C.
Pre-fuse max.:25A.
InA:25A.
RDF:1.
Connection/feeder cable:for 1 cable up to 3 x 10 mm2.
Enclosure size:130 x 225 mm (H x W).
Protection type IP44.
pre-wired for installation.
enclosure and insert made of AMAPLAST.
fusing behind a transparent cover.

Mennekes AMAXX receptacle combination 910002
Product Name:AMAXX? receptacle combination
Part No.:910002.
Fitted with:2 SCHUKO? 16A, 230V.
Fusing:1 RCD 25A, 2p, 0.03A.
Pre-fuse max.:16A.
InA:16A.
RDF:1.
Connection/feeder cable:for 1 cable up to 3 x 10 mm2.
Enclosure size:130 x 225 mm (H x W).
Protection type IP44.
pre-wired for installation.
enclosure and insert made of AMAPLAST.
fusing behind a transparent cover.

Mennekes AMAXX receptacle combination 910003
Product Name:AMAXX? receptacle combination
Part No.:910003.
Fitted with:2 SCHUKO? 16A, 230V.
Fusing:2 MCB′s 16A, 1p, C.
Pre-fuse max.:63A.
InA:16A.
RDF:1.
Connection/feeder cable:for 1 cable up to 3 x 10 mm2.
Enclosure size:130 x 225 mm (H x W).
Protection type IP44.
pre-wired for installation.
enclosure and insert made of AMAPLAST.
fusing behind a transparent cover.

Mennekes AMAXX receptacle combination 920003
Product Name:AMAXX? receptacle combination
Part No.:920003.
Fitted with:3 SCHUKO? 16A, 230V.
Fusing:1 RCD 40A, 4p, 0.03A.
3 MCB′s 16A, 1p, C.
Pre-fuse max.:100A.
InA:16A.
RDF:1.
Connection/feeder cable:for 1 cable up to 5 x 10 mm2.
Enclosure size:260 x 225 mm (H x W).
Protection type IP44.
pre-wired for installation.
hinged to the side.
enclosure and insert made of AMAPLAST.
fusing behind a transparent cover.

Mennekes AMAXX receptacle combination 960001
Product Name:AMAXX? receptacle combination
Part No.:960001.
Fitted with:3 SCHUKO? 16A, 230V.
Fusing:1 RCD 40A, 4p, 0.03A.
3 MCB′s 16A, 1p, C.
Pre-fuse max.:63A.
InA:16A.
RDF:1.
Connection/feeder cable:for 1 cable up to 5 x 10 mm2.
Enclosure size:650 x 112.5 mm (H x W).
Protection type IP44.
pre-wired for installation.
enclosure and insert made of AMAPLAST.
fusing behind a transparent cover.

Mennekes AMAXX receptacle combination 920002
Product Name:AMAXX? receptacle combination
Part No.:920002.
Fitted with:3 SCHUKO? 16A, 230V.
Fusing:3 MCB′s 16A, 1p, C.
Pre-fuse max.:63A.
InA:16A.
RDF:1.
Connection/feeder cable:for 1 cable up to 5 x 10 mm2.
Enclosure size:260 x 225 mm (H x W).
Protection type IP44.
pre-wired for installation.
enclosure and insert made of AMAPLAST.
fusing behind a transparent cover.

Mennekes AMAXX receptacle combination 920001
Product Name:AMAXX? receptacle combination
Part No.:920001.
Fitted with:3 SCHUKO? 16A, 230V.
Fusing:3 Neozed D01, 1p.
Pre-fuse max.:63A.
InA:16A.
RDF:1.
Connection/feeder cable:for 1 cable up to 5 x 10 mm2.
Enclosure size:260 x 225 mm (H x W).
Protection type IP44.
pre-wired for installation.
hinged to the side.
enclosure and insert made of AMAPLAST.
fusing behind a transparent cover.

Mennekes AMAXX receptacle combination 910005
Product Name:AMAXX? receptacle combination
Part No.:910005.
Fitted with:3 SCHUKO? 16A, 230V.
Pre-fuse max.:16A.
InA:16A.
RDF:1.
Connection/feeder cable:for 1 cable up to 5 x 10 mm2.
Enclosure size:130 x 225 mm (H x W).
Protection type IP44.
pre-wired for installation.
enclosure and insert made of AMAPLAST.

Mennekes AMAXX receptacle combination 960002
Product Name:AMAXX? receptacle combination
Part No.:960002.
Fitted with:5 SCHUKO? 16A, 230V.
Connection/feeder cable:for 1 cable up to 5 x 10 mm2.
Enclosure size:650 x 112.5 mm (H x W).
Protection type IP44.
pre-wired for installation.
enclosure and insert made of AMAPLAST.

Mennekes AMAXXs receptacle combination 960050
Product Name:AMAXX?s receptacle combination
Part No.:960050.
Fitted with:5 SCHUKO? 16A, 230V.
Connection/feeder cable:for 1 cable up to 5 x 10 mm2.
Enclosure size:650 x 112.5 mm (H x W).
Protection type IP44.
pre-wired for installation.
enclosure and insert made of AMAPLAST.

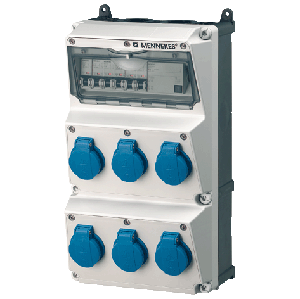

Mennekes AMAXX receptacle combination 930001
Product Name:AMAXX? receptacle combination
Part No.:930001.
Fitted with:6 SCHUKO? 16A, 230V.
Fusing:1 RCD 40A, 4p, 0.03A.
6 MCB′s 16A, 1p, C.
Pre-fuse max.:100A.
InA:30A.
RDF:0.95.
Connection/feeder cable:for 2 cables up to 5 x 25 mm2.
Enclosure size:390 x 225 mm (H x W).
Protection type IP44.
pre-wired for installation.
hinged to the side.
enclosure and insert made of AMAPLAST.
fusing behind a transparent cover.

Mennekes AMAXX receptacle combination 920028
Product Name:AMAXX? receptacle combination
Part No.:920028.
Fitted with:6 SCHUKO? 16A, 230V.
Connection/feeder cable:for 1 cable up to 5 x 10 mm2.
Enclosure size:260 x 225 mm (H x W).
Protection type IP44.
pre-wired for installation.
hinged to the side.
enclosure and insert made of AMAPLAST.
