Mennekes Wall mounted receptacle
Product Name:Wall mounted receptacle
Part No.:1136A.
Ampere:63A.
Poles:3p.
Voltage:110V.
Earth position:4h.
Hertz:50-60 Hz.
Connection technology:screw terminals.
Contact:standard.
Protection type:IP44.
screw terminals.
with SoftCONTACT.
suitable for through wiring.
internal fixing.
one cable entry at top, two blind cable entries (can be cut out) at the bottom.
enclosure base can be turned 180.
with 6 fixing points to accommodate special. terminals.
products with pilot contacts: part no. + index P.

Mennekes Wall mounted receptacle 3030
Product Name:Wall mounted receptacle
Part No.:3030.
Ampere:16A.
Poles:4p.
Voltage:110V.
Earth position:4h.
Hertz:50-60 Hz.
Connection technology:screw terminals.
Contact:standard.
Protection type:IP44.
screw terminals.
internal fixing.
one cable entry at top, two blind cable entries (can be cut out) at bottom.
enclosure base can be turned 180°.
receptacles are designed for adding an auxiliary contact switch..

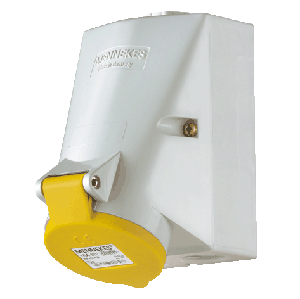

Mennekes Wall mounted receptacle 3041
Product Name:Wall mounted receptacle
Part No.:3041.
Ampere:16A.
Poles:5p.
Voltage:110V.
Earth position:4h.
Hertz:50-60 Hz.
Connection technology:screw terminals.
Contact:standard.
Protection type:IP44.
screw terminals.
internal fixing.
one cable entry at top, two blind cable entries (can be cut out) at bottom.
enclosure base can be turned 180°.
receptacles are designed for adding an auxiliary contact switch..

Mennekes Wall mounted receptacle 1420
Product Name:Wall mounted receptacle
Part No.:1420.
Ampere:32A.
Poles:3p.
Voltage:110V.
Earth position:4h.
Hertz:50-60 Hz.
Connection technology:screw terminals.
Contact:standard.
Protection type:IP44.
screw terminals.
internal fixing.
one cable entry at top, two blind cable entries (can be cut out) at bottom.
enclosure base can be turned 180°.
receptacles are designed for adding an auxiliary contact switch..

Mennekes Wall mounted receptacle 1423
Product Name:Wall mounted receptacle
Part No.:1423.
Ampere:32A.
Poles:4p.
Voltage:110V.
Earth position:4h.
Hertz:50-60 Hz.
Connection technology:screw terminals.
Contact:standard.
Protection type:IP44.
screw terminals.
internal fixing.
one cable entry at top, two blind cable entries (can be cut out) at bottom.
enclosure base can be turned 180°.
receptacles are designed for adding an auxiliary contact switch..

Mennekes Wall mounted receptacle 1555
Product Name:Wall mounted receptacle
Part No.:1555.
Ampere:32A.
Poles:5p.
Voltage:110V.
Earth position:4h.
Hertz:50-60 Hz.
Connection technology:screw terminals.
Contact:standard.
Protection type:IP44.
screw terminals.
internal fixing.
one cable entry at top, two blind cable entries (can be cut out) at bottom.
enclosure base can be turned 180°.
receptacles are designed for adding an auxiliary contact switch..

Mennekes Wall mounted receptacle 3034
Product Name:Wall mounted receptacle
Part No.:3034.
Ampere:16A.
Poles:4p.
Voltage:230V.
Earth position:9h.
Hertz:50-60 Hz.
Connection technology:screw terminals.
Contact:standard.
Protection type:IP44.
screw terminals.
internal fixing.
one cable entry at top, two blind cable entries (can be cut out) at bottom.
enclosure base can be turned 180°.
receptacles are designed for adding an auxiliary contact switch..

Mennekes Wall mounted receptacle 3045
Product Name:Wall mounted receptacle
Part No.:3045.
Ampere:16A.
Poles:5p.
Voltage:230V.
Earth position:9h.
Hertz:50-60 Hz.
Connection technology:screw terminals.
Contact:standard.
Protection type:IP44.
screw terminals.
internal fixing.
one cable entry at top, two blind cable entries (can be cut out) at bottom.
enclosure base can be turned 180°.
receptacles are designed for adding an auxiliary contact switch..

Mennekes Wall mounted receptacle 1421
Product Name:Wall mounted receptacle
Part No.:1421.
Ampere:32A.
Poles:3p.
Voltage:230V.
Earth position:6h.
Hertz:50-60 Hz.
Connection technology:screw terminals.
Contact:standard.
Protection type:IP44.
screw terminals.
internal fixing.
one cable entry at top, two blind cable entries (can be cut out) at bottom.
enclosure base can be turned 180°.
receptacles are designed for adding an auxiliary contact switch..

Mennekes Wall mounted receptacle 1424
Product Name:Wall mounted receptacle
Part No.:1424.
Ampere:32A.
Poles:4p.
Voltage:230V.
Earth position:9h.
Hertz:50-60 Hz.
Connection technology:screw terminals.
Contact:standard.
Protection type:IP44.
screw terminals.
internal fixing.
one cable entry at top, two blind cable entries (can be cut out) at bottom.
enclosure base can be turned 180°.
receptacles are designed for adding an auxiliary contact switch..

Mennekes Wall mounted receptacle 1556
Product Name:Wall mounted receptacle
Part No.:1556.
Ampere:32A.
Poles:5p.
Voltage:230V.
Earth position:9h.
Hertz:50-60 Hz.
Connection technology:screw terminals.
Contact:standard.
Protection type:IP44.
screw terminals.
internal fixing.
one cable entry at top, two blind cable entries (can be cut out) at bottom.
enclosure base can be turned 180°.
receptacles are designed for adding an auxiliary contact switch..

Mennekes Wall mounted receptacle 1418
Product Name:Wall mounted receptacle
Part No.:1418.
Ampere:16A.
Poles:4p.
Voltage:400V.
Earth position:6h.
Hertz:50-60 Hz.
Connection technology:screw terminals.
Contact:standard.
Protection type:IP44.
screw terminals.
internal fixing.
one cable entry at top, two blind cable entries (can be cut out) at bottom.
enclosure base can be turned 180°.
receptacles are designed for adding an auxiliary contact switch..
