Mennekes Wall mounted receptacle 3154
Product Name:Wall mounted receptacle
Part No.:3154.
Ampere:32A.
Poles:5p.
Voltage:>50-500V.
Earth position:10h.
Hertz:100-300 Hz.
Connection technology:screw terminals.
Contact:standard.
Protection type:IP44.
screw terminals.
internal fixing.
one cable entry at top, two blind cable entries (can be cut out) at bottom.
enclosure base can be turned 180°.
receptacles are designed for adding an auxiliary contact switch..

Mennekes Wall mounted receptacle 3028
Product Name:Wall mounted receptacle
Part No.:3028.
Ampere:16A.
Poles:4p.
Voltage:>50-500V.
Earth position:2h.
Hertz300-500 Hz.
Connection technology:screw terminals.
Contact:standard.
Protection type:IP44.
screw terminals.
internal fixing.
one cable entry at top, two blind cable entries (can be cut out) at bottom.
enclosure base can be turned 180°.
receptacles are designed for adding an auxiliary contact switch..

Mennekes Wall mounted receptacle 3039
Product Name:Wall mounted receptacle
Part No.:3039.
Ampere:16A.
Poles:5p.
Voltage:>50-500V.
Earth position:2h.
Hertz>300-500 Hz.
Connection technology:screw terminals.
Contact:standard.
Protection type:IP44.
screw terminals.
internal fixing.
one cable entry at top, two blind cable entries (can be cut out) at bottom.
enclosure base can be turned 180°.
receptacles are designed for adding an auxiliary contact switch..

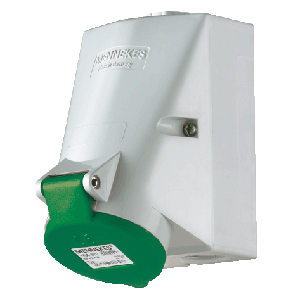

Mennekes Wall mounted receptacle 3134
Product Name:Wall mounted receptacle
Part No.:3134.
Ampere:32A.
Poles:3p.
Voltage:>50-500V.
Earth position:2h.
Hertz>300-500 Hz.
Connection technology:screw terminals.
Contact:standard.
Protection type:IP44.
screw terminals.
internal fixing.
one cable entry at top, two blind cable entries (can be cut out) at bottom.
enclosure base can be turned 180°.
receptacles are designed for adding an auxiliary contact switch..

Mennekes Wall mounted receptacle 1428
Product Name:Wall mounted receptacle
Part No.:1428.
Ampere:32A.
Poles:4p.
Voltage:>50-500V.
Earth position:2h.
Hertz>300-500 Hz.
Connection technology:screw terminals.
Contact:standard.
Protection type:IP44.
screw terminals.
internal fixing.
one cable entry at top, two blind cable entries (can be cut out) at bottom.
enclosure base can be turned 180°.
receptacles are designed for adding an auxiliary contact switch..

Mennekes Wall mounted receptacle 3149
Product Name:Wall mounted receptacle
Part No.:3149.
Ampere:32A.
Poles:5p.
Voltage:>50-500V.
Earth position:2h.
Hertz>300-500 Hz.
Connection technology:screw terminals.
Contact:standard.
Protection type:IP44.
screw terminals.
internal fixing.
one cable entry at top, two blind cable entries (can be cut out) at bottom.
enclosure base can be turned 180°.
receptacles are designed for adding an auxiliary contact switch..

Mennekes Wall mounted receptacle 100
Product Name:Wall mounted receptacle
Part No.:100.
Ampere:16A.
Poles:3p.
Voltage:110V.
Earth position:4h.
Hertz50-60 Hz.
Connection technology:screw terminals.
Contact:standard.
Protection type:IP44.
screw terminals.
internal fixing
one cable entry at top and one blind entry (can be cut out) at the bottom
4p and 5p receptacles the enclosure can be turned 180°

Mennekes Wall mounted receptacle 103
Product Name:Wall mounted receptacle
Part No.:103.
Ampere:16A.
Poles:4p.
Voltage:110V.
Earth position:4h.
Hertz50-60 Hz.
Connection technology:screw terminals.
Contact:standard.
Protection type:IP44.
screw terminals.
internal fixing
one cable entry at top and one blind entry (can be cut out) at the bottom
4p and 5p receptacles the enclosure can be turned 180°

Mennekes Wall mounted receptacle 109
Product Name:Wall mounted receptacle
Part No.:109.
Ampere:16A.
Poles:5p.
Voltage:110V.
Earth position:4h.
Hertz50-60 Hz.
Connection technology:screw terminals.
Contact:standard.
Protection type:IP44.
screw terminals.
internal fixing
one cable entry at top and one blind entry (can be cut out) at the bottom
4p and 5p receptacles the enclosure can be turned 180°

Mennekes Wall mounted receptacle 101
Product Name:Wall mounted receptacle
Part No.:101.
Ampere:16A.
Poles:3p.
Voltage:230V.
Earth position:6h.
Hertz50-60 Hz.
Connection technology:screw terminals.
Contact:standard.
Protection type:IP44.
screw terminals.
internal fixing
one cable entry at top and one blind entry (can be cut out) at the bottom
4p and 5p receptacles the enclosure can be turned 180°

Mennekes Wall mounted receptacle 104
Product Name:Wall mounted receptacle
Part No.:104.
Ampere:16A.
Poles:4p.
Voltage:230V.
Earth position:9h.
Hertz50-60 Hz.
Connection technology:screw terminals.
Contact:standard.
Protection type:IP44.
screw terminals.
internal fixing.
one cable entry at top and one blind entry (can be cut out) at the bottom.
4p and 5p receptacles the enclosure can be turned 180°.

Mennekes Wall mounted receptacle 110
Product Name:Wall mounted receptacle
Part No.:110.
Ampere:16A.
Poles:5p.
Voltage:230V.
Earth position:9h.
Hertz50-60 Hz.
Connection technology:screw terminals.
Contact:standard.
Protection type:IP44.
screw terminals.
internal fixing.
one cable entry at top and one blind entry (can be cut out) at the bottom.
4p and 5p receptacles the enclosure can be turned 180°.
