Mennekes Receptacle 1719
Product Name:Wall mounted receptacle with TwinCONTACT.
Part No.:1719.
Ampere:16 A.
Poles:3 p.
Voltage:110V.
Earth position:4 h.
Hertz:50-60 Hz.
Connection technology:Screwless - TwinCONTACT.
Contact:standard.
Protection type:IP44.
screwless spring terminals
suitable for through wiring
internal fixing
one cable entry at top and one blind entry (can be cut out) at bottom
enclosure base can be turned 180°

Mennekes Receptacle 1720
Product Name:Wall mounted receptacle with TwinCONTACT.
Part No.:1720.
Ampere:16 A.
Poles:3 p.
Voltage:230V.
Earth position:6 h.
Hertz:50-60 Hz.
Connection technology:Screwless - TwinCONTACT.
Contact:standard.
Protection type:IP44.
screwless spring terminals
suitable for through wiring
internal fixing
one cable entry at top and one blind entry (can be cut out) at bottom
enclosure base can be turned 180°

Mennekes Receptacle 1723
Product Name:Wall mounted receptacle with TwinCONTACT.
Part No.:1723.
Ampere:16 A.
Poles:4 p.
Voltage:230V.
Earth position:9 h.
Hertz:50-60 Hz.
Connection technology:Screwless - TwinCONTACT.
Contact:standard.
Protection type:IP44.
screwless spring terminals
suitable for through wiring
internal fixing
one cable entry at top and one blind entry (can be cut out) at bottom
enclosure base can be turned 180°

Mennekes Receptacle 1730
Product Name:Wall mounted receptacle with TwinCONTACT.
Part No.:1730.
Ampere:16 A.
Poles:5 p.
Voltage:230V.
Earth position:9 h.
Hertz:50-60 Hz.
Connection technology:Screwless - TwinCONTACT.
Contact:standard.
Protection type:IP44.
screwless spring terminals
suitable for through wiring
internal fixing
one cable entry at top and one blind entry (can be cut out) at bottom
enclosure base can be turned 180°

Mennekes Receptacle 1721
Product Name:Wall mounted receptacle with TwinCONTACT.
Part No.:1721.
Ampere:16 A.
Poles:3 p.
Voltage:400V.
Earth position:9 h.
Hertz:50-60 Hz.
Connection technology:Screwless - TwinCONTACT.
Contact:standard.
Protection type:IP44.
screwless spring terminals
suitable for through wiring
internal fixing
one cable entry at top and one blind entry (can be cut out) at bottom
enclosure base can be turned 180°

Mennekes Receptacle 1724
Product Name:Wall mounted receptacle with TwinCONTACT.
Part No.:1724.
Ampere:16 A.
Poles:4 p.
Voltage:400V.
Earth position:6 h.
Hertz:50-60 Hz.
Connection technology:Screwless - TwinCONTACT.
Contact:standard.
Protection type:IP44.
screwless spring terminals
suitable for through wiring
internal fixing
one cable entry at top and one blind entry (can be cut out) at bottom
enclosure base can be turned 180°

Mennekes Receptacle 3331
Product Name:Wall mounted receptacle with TwinCONTACT.
Part No.:3331.
Ampere:16 A.
Poles:5 p.
Voltage:400V.
Earth position:6 h.
Hertz:50-60 Hz.
Connection technology:Screwless - TwinCONTACT.
Contact:standard.
Protection type:IP44.
screwless spring terminals
suitable for through wiring
internal fixing
one cable entry at top and one blind entry (can be cut out) at bottom
enclosure base can be turned 180°

Mennekes Receptacle 1725
Product Name:Wall mounted receptacle with TwinCONTACT.
Part No.:1725.
Ampere:16 A.
Poles:4 p.
Voltage:500V.
Earth position:7 h.
Hertz:50-60 Hz.
Connection technology:Screwless - TwinCONTACT.
Contact:standard.
Protection type:IP44.
screwless spring terminals
suitable for through wiring
internal fixing
one cable entry at top and one blind entry (can be cut out) at bottom
enclosure base can be turned 180°

Mennekes Receptacle 1726
Product Name:Wall mounted receptacle with TwinCONTACT.
Part No.:1726.
Ampere:16 A.
Poles:4 p.
Voltage:>50-500V.
Earth position:10 h.
Hertz:100-300hz Hz.
Connection technology:Screwless - TwinCONTACT.
Contact:standard.
Protection type:IP44.
screwless spring terminals
suitable for through wiring
internal fixing
one cable entry at top and one blind entry (can be cut out) at bottom
enclosure base can be turned 180°

Mennekes Receptacle 1727
Product Name:Wall mounted receptacle with TwinCONTACT.
Part No.:1727.
Ampere:16 A.
Poles:4 p.
Voltage:>50-500V.
Earth position:2 h.
Hertz:>300-500 Hz.
Connection technology:Screwless - TwinCONTACT.
Contact:standard.
Protection type:IP44.
screwless spring terminals
suitable for through wiring
internal fixing
one cable entry at top and one blind entry (can be cut out) at bottom
enclosure base can be turned 180°

Mennekes Receptacle 1750
Product Name:Wall mounted receptacle with TwinCONTACT.
Part No.:1750.
Ampere:16 A.
Poles:4 p.
Voltage:110V.
Earth position:4 h.
Hertz:50-60 Hz.
Connection technology:Screwless - TwinCONTACT.
Contact:standard.
Protection type:IP44.
screwless spring terminals.
suitable for through wiring.
internal fixing.
one cable entry at top and two blind entries (can be cut out) at bottom.
enclosure base can be turned 180°.
receptacles are designed for adding an auxiliary contact switch..

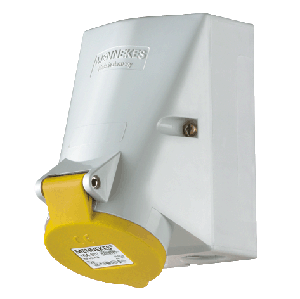

Mennekes Receptacle 1755
Product Name:Wall mounted receptacle with TwinCONTACT.
Part No.:1755.
Ampere:16 A.
Poles:5 p.
Voltage:110V.
Earth position:4 h.
Hertz:50-60 Hz.
Connection technology:Screwless - TwinCONTACT.
Contact:standard.
Protection type:IP44.
screwless spring terminals.
suitable for through wiring.
internal fixing.
one cable entry at top and two blind entries (can be cut out) at bottom.
enclosure base can be turned 180°.
receptacles are designed for adding an auxiliary contact switch..
