Mennekes Wall mounted receptacle 1374
Product Name:Wall mounted receptacle.
Part No.:1374.
Ampere:32A.
Poles:4p.
Voltage:500V.
Earth position:7h.
Hertz:50-60 Hz.
Connection technology:screw terminals.
Contact:standard.
Protection type:IP44.
screw terminals.
external fixing.
cable entry at top.

Mennekes Wall mounted receptacle 1193
Product Name:Wall mounted receptacle.
Part No.:1193.
Ampere:16A.
Poles:3p.
Voltage:110V.
Earth position:4h.
Hertz:50-60 Hz.
Connection technology:screw terminals.
Contact:standard.
Protection type:IP67.
screw terminals.
four external fixing holes..
one cable entry at top and one blind cable entry (can be cut out) at bottom..
receptacles are designed for adding an auxiliary contact switch..

Mennekes Wall mounted receptacle 1194
Product Name:Wall mounted receptacle.
Part No.:1194.
Ampere:16A.
Poles:4p.
Voltage:110V.
Earth position:4h.
Hertz:50-60 Hz.
Connection technology:screw terminals.
Contact:standard.
Protection type:IP67.
screw terminals.
four external fixing holes.
one cable entry at top and one blind cable entry (can be cut out) at bottom.
receptacles are designed for adding an auxiliary contact switch.

Mennekes Wall mounted receptacle 1198
Product Name:Wall mounted receptacle.
Part No.:1198.
Ampere:16A.
Poles:5p.
Voltage:110V.
Earth position:4h.
Hertz:50-60 Hz.
Connection technology:screw terminals.
Contact:standard.
Protection type:IP67.
screw terminals.
four external fixing holes.
one cable entry at top and one blind cable entry (can be cut out) at bottom.
receptacles are designed for adding an auxiliary contact switch.

Mennekes Wall mounted receptacle 1201
Product Name:Wall mounted receptacle.
Part No.:1201.
Ampere:32A.
Poles:3p.
Voltage:110V.
Earth position:4h.
Hertz:50-60 Hz.
Connection technology:screw terminals.
Contact:standard.
Protection type:IP67.
screw terminals.
four external fixing holes.
one cable entry at top and one blind cable entry (can be cut out) at bottom.
receptacles are designed for adding an auxiliary contact switch.

Mennekes Wall mounted receptacle 1204
Product Name:Wall mounted receptacle.
Part No.:1204.
Ampere:32A.
Poles:4p.
Voltage:110V.
Earth position:4h.
Hertz:50-60 Hz.
Connection technology:screw terminals.
Contact:standard.
Protection type:IP67.
screw terminals.
four external fixing holes.
one cable entry at top and one blind cable entry (can be cut out) at bottom.
receptacles are designed for adding an auxiliary contact switch.

Mennekes Wall mounted receptacle 1208
Product Name:Wall mounted receptacle.
Part No.:1208.
Ampere:32A.
Poles:5p.
Voltage:110V.
Earth position:4h.
Hertz:50-60 Hz.
Connection technology:screw terminals.
Contact:standard.
Protection type:IP67.
screw terminals.
four external fixing holes.
one cable entry at top and one blind cable entry (can be cut out) at bottom.
receptacles are designed for adding an auxiliary contact switch.

Mennekes Wall mounted receptacle 1192
Product Name:Wall mounted receptacle.
Part No.:1192.
Ampere:16A.
Poles:3p.
Voltage:230V.
Earth position:6h.
Hertz:50-60 Hz.
Connection technology:screw terminals.
Contact:standard.
Protection type:IP67.
screw terminals.
four external fixing holes.
one cable entry at top and one blind cable entry (can be cut out) at bottom.
receptacles are designed for adding an auxiliary contact switch.

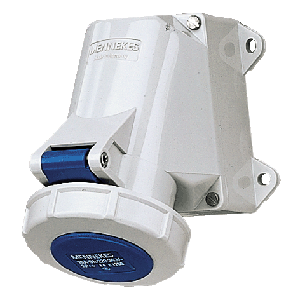

Mennekes Wall mounted receptacle 1195
Product Name:Wall mounted receptacle.
Part No.:1195.
Ampere:16A.
Poles:4p.
Voltage:230V.
Earth position:9h.
Hertz:50-60 Hz.
Connection technology:screw terminals.
Contact:standard.
Protection type:IP67.
screw terminals.
four external fixing holes.
one cable entry at top and one blind cable entry (can be cut out) at bottom.
receptacles are designed for adding an auxiliary contact switch.

Mennekes Wall mounted receptacle 1199
Product Name:Wall mounted receptacle.
Part No.:1199.
Ampere:16A.
Poles:5p.
Voltage:230V.
Earth position:9h.
Hertz:50-60 Hz.
Connection technology:screw terminals.
Contact:standard.
Protection type:IP67.
screw terminals.
four external fixing holes.
one cable entry at top and one blind cable entry (can be cut out) at bottom.
receptacles are designed for adding an auxiliary contact switch.

Mennekes Wall mounted receptacle 1202
Product Name:Wall mounted receptacle.
Part No.:1202.
Ampere:32A.
Poles:3p.
Voltage:230V.
Earth position:6h.
Hertz:50-60 Hz.
Connection technology:screw terminals.
Contact:standard.
Protection type:IP67.
screw terminals.
four external fixing holes.
one cable entry at top and one blind cable entry (can be cut out) at bottom.
receptacles are designed for adding an auxiliary contact switch.

Mennekes Wall mounted receptacle 1205
Product Name:Wall mounted receptacle.
Part No.:1205.
Ampere:32A.
Poles:4p.
Voltage:230V.
Earth position:9h.
Hertz:50-60 Hz.
Connection technology:screw terminals.
Contact:standard.
Protection type:IP67.
screw terminals.
four external fixing holes.
one cable entry at top and one blind cable entry (can be cut out) at bottom.
receptacles are designed for adding an auxiliary contact switch.
