Mennekes Wall mounted receptacle 1215
Product Name:Wall mounted receptacle.
Part No.:1215.
Ampere:32A.
Poles:4p.
Voltage:>50-500V.
Earth position:2h.
Hertz:300-500 Hz.
Connection technology:screw terminals.
Contact:standard.
Protection type:IP67.
screw terminals.
four external fixing holes.
one cable entry at top and one blind cable entry (can be cut out) at bottom.
receptacles are designed for adding an auxiliary contact switch.
Mennekes Receptacle 1867
Product Name:Wall mounted receptacle with TwinCONTACT
Part No.:1867.
Ampere:16A.
Poles:3p.
Voltage:110V.
Earth position:4h.
Hertz:50-60 Hz.
Connection technology:Screwless - TwinCONTACT.
Contact:standard.
Protection type:IP67.
screwless spring terminals
suitable for through wiring
with 4 external fixing points
one cable entry at top and one blind entry (can be cut out) at bottom
receptacles are designed for adding an auxiliary contact switch.

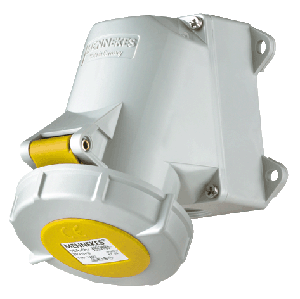

Mennekes Receptacle 1870
Product Name:Wall mounted receptacle with TwinCONTACT
Part No.:1870.
Ampere:16A.
Poles:4p.
Voltage:110V.
Earth position:4h.
Hertz:50-60 Hz.
Connection technology:Screwless - TwinCONTACT.
Contact:standard.
Protection type:IP67.
screwless spring terminals
suitable for through wiring
with 4 external fixing points
one cable entry at top and one blind entry (can be cut out) at bottom
receptacles are designed for adding an auxiliary contact switch.
Mennekes Receptacle 1875
Product Name:Wall mounted receptacle with TwinCONTACT
Part No.:1875.
Ampere:16A.
Poles:5p.
Voltage:110V.
Earth position:4h.
Hertz:50-60 Hz.
Connection technology:Screwless - TwinCONTACT.
Contact:standard.
Protection type:IP67.
screwless spring terminals
suitable for through wiring
with 4 external fixing points
one cable entry at top and one blind entry (can be cut out) at bottom
receptacles are designed for adding an auxiliary contact switch.
Mennekes Receptacle 1877
Product Name:Wall mounted receptacle with TwinCONTACT
Part No.:1877.
Ampere:32A.
Poles:3p.
Voltage:110V.
Earth position:4h.
Hertz:50-60 Hz.
Connection technology:Screwless - TwinCONTACT.
Contact:standard.
Protection type:IP67.
screwless spring terminals.
suitable for through wiring.
with 4 external fixing points.
one cable entry at top and one blind entry (can be cut out) at bottom.
receptacles are designed for adding an auxiliary contact switch..
Mennekes Receptacle 1879
Product Name:Wall mounted receptacle with TwinCONTACT
Part No.:1879.
Ampere:32A.
Poles:5p.
Voltage:110V.
Earth position:4h.
Hertz:50-60 Hz.
Connection technology:Screwless - TwinCONTACT.
Contact:standard.
Protection type:IP67.
screwless spring terminals.
suitable for through wiring.
with 4 external fixing points.
one cable entry at top and one blind entry (can be cut out) at bottom.
receptacles are designed for adding an auxiliary contact switch..
Mennekes Receptacle 1884
Product Name:Wall mounted receptacle with TwinCONTACT
Part No.:1884.
Ampere:32A.
Poles:5p.
Voltage:110V.
Earth position:4h.
Hertz:50-60 Hz.
Connection technology:Screwless - TwinCONTACT.
Contact:standard.
Protection type:IP67.
screwless spring terminals.
suitable for through wiring.
with 4 external fixing points.
one cable entry at top and one blind entry (can be cut out) at bottom.
receptacles are designed for adding an auxiliary contact switch..
Mennekes Receptacle 241
Product Name:Wall mounted receptacle with TwinCONTACT
Part No.:241.
Ampere:16A.
Poles:3p.
Voltage:230V.
Earth position:6h.
Hertz:50-60 Hz.
Connection technology:Screwless - TwinCONTACT.
Contact:standard.
Protection type:IP67.
screwless spring terminals.
suitable for through wiring.
with 4 external fixing points.
one cable entry at top and one blind entry (can be cut out) at bottom.
receptacles are designed for adding an auxiliary contact switch..
Mennekes Receptacle 1871
Product Name:Wall mounted receptacle with TwinCONTACT
Part No.:1871.
Ampere:16A.
Poles:4p.
Voltage:230V.
Earth position:9h.
Hertz:50-60 Hz.
Connection technology:Screwless - TwinCONTACT.
Contact:standard.
Protection type:IP67.
screwless spring terminals.
suitable for through wiring.
with 4 external fixing points.
one cable entry at top and one blind entry (can be cut out) at bottom.
receptacles are designed for adding an auxiliary contact switch..

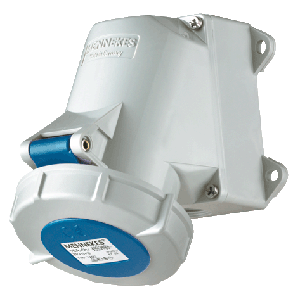

Mennekes Receptacle 1876
Product Name:Wall mounted receptacle with TwinCONTACT
Part No.:1876.
Ampere:16A.
Poles:5p.
Voltage:230V.
Earth position:9h.
Hertz:50-60 Hz.
Connection technology:Screwless - TwinCONTACT.
Contact:standard.
Protection type:IP67.
screwless spring terminals.
suitable for through wiring.
with 4 external fixing points.
one cable entry at top and one blind entry (can be cut out) at bottom.
receptacles are designed for adding an auxiliary contact switch..
Mennekes Receptacle 243
Product Name:Wall mounted receptacle with TwinCONTACT
Part No.:243.
Ampere:32A.
Poles:3p.
Voltage:230V.
Earth position:6h.
Hertz:50-60 Hz.
Connection technology:Screwless - TwinCONTACT.
Contact:standard.
Protection type:IP67.
screwless spring terminals.
suitable for through wiring.
with 4 external fixing points.
one cable entry at top and one blind entry (can be cut out) at bottom.
receptacles are designed for adding an auxiliary contact switch..
Mennekes Receptacle 1880
Product Name:Wall mounted receptacle with TwinCONTACT
Part No.:1880.
Ampere:32A.
Poles:4p.
Voltage:230V.
Earth position:9h.
Hertz:50-60 Hz.
Connection technology:Screwless - TwinCONTACT.
Contact:standard.
Protection type:IP67.
screwless spring terminals.
suitable for through wiring.
with 4 external fixing points.
one cable entry at top and one blind entry (can be cut out) at bottom.
receptacles are designed for adding an auxiliary contact switch..
