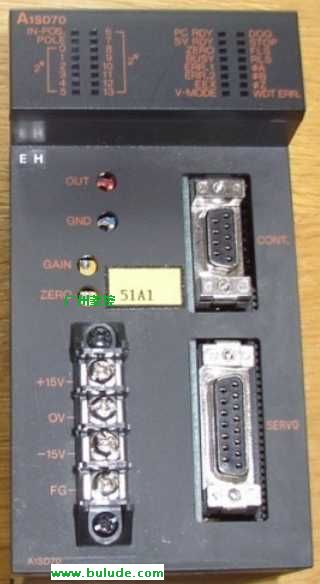

Mitsubishi Positioning Module A1SD70
Product: Positioning Module.
Model: A1SD70.
Outline: 1 axis, control unit: pulse, no.of positioning data: 1 piece/axis, 15-pin connector/9-pin connector, analog voltage output (-10 to 10 V DC).

Mitsubishi Positioning Module A1SD75P1-S3
Product: Positioning Module.
Model: A1SD75P1-S3.
Outline: 1 axis; control unit: pulse, mm, inch, degree; no.of positioning data: 600 pieces/axis; max.output pulse: 400 kpps (differential driver), 200 kpps (open collector); 36-pin connector.

Mitsubishi Positioning Module A1SD75P2-S3
Product: Positioning Module.
Model: A1SD75P2-S3.
Outline: 2 axes; 2-axis linear interpolation/ 2-axis circular interpolation; control unit: pulse, mm, inch, degree; no.of positioning data: 600 pieces/axis; max.output pulse: 400 kpps (differential driver), 200 kpps (open collector); 36-pin connector.

Mitsubishi Positioning Module A1SD75P3-S3
Product: Positioning Module.
Model: A1SD75P3-S3.
Outline: 3 axes; 2-axis linear interpolation/ 2-axis circular interpolation; control unit: pulse, mm, inch, degree; no.of positioning data: 600 pieces/axis; max.output pulse: 400 kpps (differential driver), 200 kpps (open collector); 36-pin connector.

Mitsubishi Positioning Module A1SD75M1
Product: Positioning Module.
Model: A1SD75M1.
Outline: 1 axis; control unit: pulse, mm, inch, degree; no.of positioning data: 600 pieces/axis; 36-pin connector; SSCNET connection.

Mitsubishi Positioning Module A1SD75M2
Product: Positioning Module.
Model: A1SD75M2.
Outline: 2 axes; 2-axis linear interpolation/ 2-axis circular interpolation; control unit: pulse, mm, inch, degree; no.of positioning data: 600 pieces/axis; 36-pin connector; SSCNET connection.

Mitsubishi Positioning Module A1SD75M3
Product: Positioning Module.
Model: A1SD75M3.
Outline: 3 axes; 2-axis linear interpolation/ 2-axis circular interpolation; control unit: pulse, mm, inch, degree; no.of positioning data: 600 pieces/axis 36-pin connector; SSCNET connection.

Mitsubishi Positioning Module A1SD71-S6
Model : A1SD71-S6.
No.of control: axes 2.
Interpolation: linear interpolation (with simultaneous 2-axis).
No.of positioning data: 400/axis.
No.of occupied slots: 48 points/2 slots.
Size: 130(H)×69.5(W)×93.6(D)mm.
Weight: 0.38kg.

Mitsubishi Positioning Module A1SD71-S7
Model : A1SD71-S7.
No.of control: axes 2.
Interpolation: linear interpolation (with simultaneous 2-axis).
No.of positioning data: 400/axis.
No.of occupied slots: 48 points/2 slots.
Size: 130(H)×69.5(W)×93.6(D)mm.
Weight: 0.38kg.

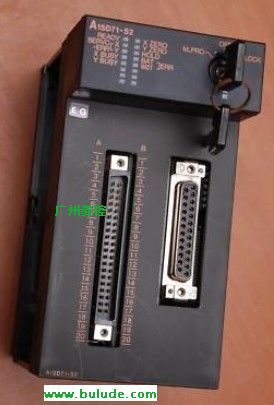

Mitsubishi Positioning Module A1SD71-S2
Model : A1SD71-S2.
Number of controlled axes : 2-axis.
Interpolation : Linear interpolation (with simultaneous 2-axis).
Number of positioning data : 400 data for each axis.

Mitsubishi Motion Control Module A1SD778M
Model : A1SD778M.
Number of control axes: 8-axis (axis 2-4 simultaneous, independent 8 axes).
Interpolation: linear interpolation (up to 4 axes).
Control method: PTP (Point To Point), speed control, feeding, speed control, etc.
Control Unit: mm, inch, degree, PULSE.

Mitsubishi Motion Control Module A1SD774M
Model : A1SD774M.
Number of control axes: 4-axis (axis 2-4 simultaneous, independent 4 axes).
Interpolation: linear interpolation (up to 4 axes).
Control method: PTP (Point To Point), speed control, feeding, speed control, etc.
Control Unit: mm, inch, degree, PULSE.
