CJ-Series PLC Digital I/O Units: 8 to 64 points per unit – input, output or mixed.
Digital I/O units serve as the PLC's interface to achieve fast, reliable sequence control. A full range of units, from high-speed DC inputs to relay outputs, let you adapt to your needs. CJ-Series units are available with various I/O densities and connection technologies. Up to 16 I/O points can be wired to units with detachable M3 screw terminals or screwless clamp terminals. High-density 32- and 64- point I/O units are equipped with standard 40-pin flat cable-connectors. Prefabricated cables and wiring terminals are available for easy interfacing to high-density I/O units.
OMRON DC Input Unit CJ1W-ID211
Brand: OMRON.
Product Name: DC Input Unit.
OMRON Model: CJ1W-ID211.(CJ1W-ID231 Inputs: 32 pts)
Input voltage: 24 VDC.
OMRON ID211 Inputs: 16 pts.
Input current (typical): 7mA.
Input Module CJ1W-ID211 Connections: Removeable terminal block.
Brand: OMRON.
Product Name: DC Input Unit.
OMRON Model: CJ1W-ID211.(CJ1W-ID231 Inputs: 32 pts)
Input voltage: 24 VDC.
OMRON ID211 Inputs: 16 pts.
Input current (typical): 7mA.
Input Module CJ1W-ID211 Connections: Removeable terminal block.
OMRON DC Input Unit CJ1W-ID231
Brand: OMRON.
Product name: DC Input Unit.
Input Module Model: CJ1W-ID231.
CJ1W-ID231 Input voltage: 24 VDC.
OMRON ID231 Inputs: 32 pts.
Input current (typical): 4.1mA.
Connections: Fujitsu-compatible connector.
Brand: OMRON.
Product name: DC Input Unit.
Input Module Model: CJ1W-ID231.
CJ1W-ID231 Input voltage: 24 VDC.
OMRON ID231 Inputs: 32 pts.
Input current (typical): 4.1mA.
Connections: Fujitsu-compatible connector.
OMRON DC Input Unit CJ1W-ID232
Brand: OMRON.
Product name: DC Input Unit.
OMRON Input Unit Model: CJ1W-ID232.
Input voltage: 24 VDC.
Input Unit CJ1W ID232 Inputs: 32 pts.
Input current (typical): 4.1mA.
ID232 Connections: MIL connector.
Brand: OMRON.
Product name: DC Input Unit.
OMRON Input Unit Model: CJ1W-ID232.
Input voltage: 24 VDC.
Input Unit CJ1W ID232 Inputs: 32 pts.
Input current (typical): 4.1mA.
ID232 Connections: MIL connector.
OMRON DC Input Unit CJ1W-ID261
Brand: OMRON.
Product name: DC Input Unit.
CJ-Series 64 Pts Model: CJ1W-ID261.
CJ1W ID261 Input voltage: 24 VDC.
ID261 Inputs: 64 pts.
Input current (typical): 4.1mA.
Connections: Fujitsu-compatible connector.
Brand: OMRON.
Product name: DC Input Unit.
CJ-Series 64 Pts Model: CJ1W-ID261.
CJ1W ID261 Input voltage: 24 VDC.
ID261 Inputs: 64 pts.
Input current (typical): 4.1mA.
Connections: Fujitsu-compatible connector.
OMRON DC Input Unit CJ1W-ID262
Brand: OMRON.
Product name: DC Input Unit.
MIL connector 64 pts Model: CJ1W-ID262.
Input voltage: 24 VDC.
OMRON module CJ1W-ID262 Inputs: 64 pts.
Input current (typical): 4.1mA.
CJ1W-ID262 Connections: MIL connector.
Brand: OMRON.
Product name: DC Input Unit.
MIL connector 64 pts Model: CJ1W-ID262.
Input voltage: 24 VDC.
OMRON module CJ1W-ID262 Inputs: 64 pts.
Input current (typical): 4.1mA.
CJ1W-ID262 Connections: MIL connector.
OMRON DC Input Module CJ1W-ID212
Brand: OMRON.
Product name: DC Input Unit.
Model: CJ1W-ID212.
Points: 16 inputs(High-speed type)
Input voltage and current: 24 VDC, 7 mA.
Connection: Terminal block
Commons: 16 points, 1 common
Brand: OMRON.
Product name: DC Input Unit.
Model: CJ1W-ID212.
Points: 16 inputs(High-speed type)
Input voltage and current: 24 VDC, 7 mA.
Connection: Terminal block
Commons: 16 points, 1 common
OMRON DC Input Module CJ1W-ID233
Brand: OMRON.
Product name: DC Input Module.
Brand&Model: OMRON CJ1W-ID233.
CJ1W-ID233 Points: 32 inputs(High-speed type).
Input voltage and current: 24 VDC, 4.1 mA.
Input Module ID233 Connection: MIL connector.
Commons: 16 points, 1 common
Brand: OMRON.
Product name: DC Input Module.
Brand&Model: OMRON CJ1W-ID233.
CJ1W-ID233 Points: 32 inputs(High-speed type).
Input voltage and current: 24 VDC, 4.1 mA.
Input Module ID233 Connection: MIL connector.
Commons: 16 points, 1 common
OMRON DC Input Module CJ1W-ID201
Brand: OMRON.
Product name: DC Input Module.
Name&Model: Input Module CJ1W-ID201.
CJ1W-ID201 OMRON Points : 8 points
Rating : 10 mA, 12 to 24 VDC
Connection : Terminal block
OMRON CJ1W-ID201 Current consumption : 0.06 A, 5 VDC
Brand: OMRON.
Product name: DC Input Module.
Name&Model: Input Module CJ1W-ID201.
CJ1W-ID201 OMRON Points : 8 points
Rating : 10 mA, 12 to 24 VDC
Connection : Terminal block
OMRON CJ1W-ID201 Current consumption : 0.06 A, 5 VDC
OMRON AC Input Unit CJ1W-IA111
Brand: OMRON.
Product name: AC Input Module.
OMRON AC Module Model: CJ1W-IA111.
Input voltage: 100 to 120 VAC.
OMRON Moudule CJ1W-IA111 Inputs: 16 pts.
Input current (typical): 7 mA.
IA111 Connections: Removeable terminal block.
Brand: OMRON.
Product name: AC Input Module.
OMRON AC Module Model: CJ1W-IA111.
Input voltage: 100 to 120 VAC.
OMRON Moudule CJ1W-IA111 Inputs: 16 pts.
Input current (typical): 7 mA.
IA111 Connections: Removeable terminal block.
OMRON AC Input Unit CJ1W-IA201
Brand: OMRON.
Product name: AC Input Module.
Model: CJ1W-IA201.
CJ1W-IA201 Input voltage: 200 to 240 VAC.
OMRON IA201 Input ModuleInputs: 8 pts.
Input current (typical): 9 mA.
Connections: Removeable terminal block.
Brand: OMRON.
Product name: AC Input Module.
Model: CJ1W-IA201.
CJ1W-IA201 Input voltage: 200 to 240 VAC.
OMRON IA201 Input ModuleInputs: 8 pts.
Input current (typical): 9 mA.
Connections: Removeable terminal block.
OMRON Interrupt Input Unit CJ1W-INT01
Brand: OMRON.
Product name: Interrupt Input Unit.
Model: CJ1W-INT01(OMRON).
Input voltage: 24 VDC.
CJ1W-INT01 Interrupt Input Inputs: 16 inputs.
Input signal pulse width: ON: 0.05 ms min.OFF: 0.5 ms min.
CJ1W-INT01 External connections: Removable terminal block.
Brand: OMRON.
Product name: Interrupt Input Unit.
Model: CJ1W-INT01(OMRON).
Input voltage: 24 VDC.
CJ1W-INT01 Interrupt Input Inputs: 16 inputs.
Input signal pulse width: ON: 0.05 ms min.OFF: 0.5 ms min.
CJ1W-INT01 External connections: Removable terminal block.

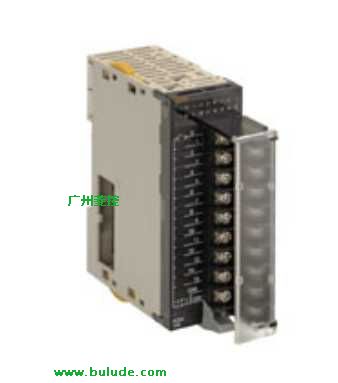

OMRON High-speed Input Unit CJ1W-IDP01
Brand: OMRON.
Product name: High-speed Input Unit.
High-speed Input Model: CJ1W-IDP01.
Input voltage: 24 VDC.
CJ1W-IDP01 OMRON Inputs: 16 inputs.
CJ1W-IDP01 Input signal pulse width: ON: 0.05 ms min.OFF: 0.5 ms min.
No. of mountable Units: No restrictions beyond normal limits for CPU Unit.
Mounting location: No restrict
Brand: OMRON.
Product name: High-speed Input Unit.
High-speed Input Model: CJ1W-IDP01.
Input voltage: 24 VDC.
CJ1W-IDP01 OMRON Inputs: 16 inputs.
CJ1W-IDP01 Input signal pulse width: ON: 0.05 ms min.OFF: 0.5 ms min.
No. of mountable Units: No restrictions beyond normal limits for CPU Unit.
Mounting location: No restrict
