952 Mennekes Plug StarTOP with SafeCONTACT Mennekes 952
Product Name:Plug StarTOP? with SafeCONTACT
Part Mennekes 952 No.:952.
Ampere:16A.
Poles:4p.
Voltage:400V.
Earth pos. Mennekes 952
Hertz 50-60Hz.
Connection technology:Screwless - SafeCONTACT.
Contact:standard.
Protection type IP44.
screwless, with insulating displacing technique.
SafeCONTACT.
cable gland and sealing.
strain relief and protection against kinking.
enclosure with thread lock and safety slide.
Part Mennekes 952 No.:952.
Ampere:16A.
Poles:4p.
Voltage:400V.
Earth pos. Mennekes 952
Hertz 50-60Hz.
Connection technology:Screwless - SafeCONTACT.
Contact:standard.
Protection type IP44.
screwless, with insulating displacing technique.
SafeCONTACT.
cable gland and sealing.
strain relief and protection against kinking.
enclosure with thread lock and safety slide.
Mennekes 952
Product Name:AMAXX?S receptacle combination
Part No.:950040.
Fitted with:1 Mennekes Plug StarTOP 952 with SafeCONTACT CEE 32A, 5p, 400V
2 CEE 16A, 5p, 400V
4 SCHUKO? 16A, 230V.
Fusing:1 RCD 63A, 4p, 0.03A
1 Mennekes Plug StarTOP 952 with SafeCONTACT MCB 32A, 3p, C
2 MCB′s 16A, 3p, C
4 MCB′s 16A, 1p, C. Mennekes Plug StarTOP with SafeCONTACT
Pre-fuse max:63A. Mennekes 952
InA :53A. Mennekes 952
RDF:0.55.
Connection/feeder Mennekes 952 cable:for 2 cable up to 5 x 25mm.
Enclosure size:650 x 225mm (H x W).
Protection type IP44.
highly resistant to chemicals made of AMELAN?.
with highly heat resistant contact carrier and nickel plated contacts.
pre-wired for installation.
enclosure front cover grey RAL 7000.
hinged to the side.
fusing behind a transparent cover.
Product Name:AMAXX? receptacle combination
Part No.:950005.
Fitted with:1 CEE 32A, 5p, 400V
1 CEE 16A, 5p, 400V
1 CEE 16A, 3p, 230V
3 SCHUKO? 16A, 230V.
Fusing:1 RCD 63A, 4p, 0.03A
1 Neozed D02, 3p
1 Neozed D01, 3p
4 Neozed D01, 1p.
Pre-fuse max.:63A.
InA:44A.
RDF:0.55.
Connection/feeder cable:for 2 cable up to 5 x 25 mm2.
Enclosure size:650 x 225 mm (H x W).
Protection type IP44.
pre-wired for installation.
hinged to the side.
enclosure and insert made of AMAPLAST.
fusing behind a transparent cover.
Product Name:Wall mounted receptacle
Part No.9532.
Ampere :16A.
Poles:7P.
Voltage:400V.
Earth position:6h.
Hertz:50-60 Hz.
Connection technology:Screw terminals.
Contact:nickel plated contacts, highly heat resistant contact carrier.
Protection type:IP67.
screw terminals.
enclosure material PBT, free of halogens, highly resistant to chemicals.
with highly heat resistant contact carrier.
nickel plated contacts.
2 external fixings.
one cable entry at top, two blind cable entries (can be cut out) at the bottom.
enclosure can be turned 180°.
receptacles are designed for adding an auxiliary contact switch.

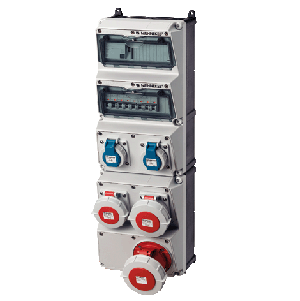

Product Name:AMAXX? receptacle combination
Part No.:950030.
Fitted with:1 CEE 32A, 5p, 400V
2 CEE 16A, 5p, 400V
3 SCHUKO? 16A, 230V.
Fusing:1 RCD 63A, 4p, 0.03A
1 MCB 32A, 3p, C
2 MCB′s 16A, 3p, C
3 MCB′s 16A, 1p, C.
Pre-fuse max:63A.
InA :48A.
RDF:0.6.
Connection/feeder cable:for 2 cable up to 5 x 25mm2.
Enclosure size:650 x 225 mm (H x W).
Protection type IP67.
pre-wired for installation.
hinged to the side.
enclosure and insert madee Mennekess 952 Plug StarTOP with SafeCONTACT of AMAPLAST.
fusing behind a transparent cover.
