Mennekes AMAXX receptacle combination 932786
Product Name:AMAXX? receptacle combination
Part No.:932786.
Fitted with:1 CEE 16A, 4p, 400V
3 french/belg. standard 16A, 2p+E, 230V.
Fusing:1 RCD 40A, 4p, 0.03A
1 MCB 16A, 3p, C
4 MCB′s 16A, 1p+N, C.
Pre-fuse max:100A.
InA :32A .
RDF:1 .
Connection/feeder cable:for 1 cable up to 5 x 16mm2.
Enclosure size:390 x 225 mm (H x W).
Protection type IP44.
pre-wired for installation.
hinged to the side.
enclosure and insert made of AMAPLAST.
fusing behind a transparent cover.

Mennekes AMAXX receptacle combination 940286
Product Name:AMAXX? receptacle combination
Part No.:940286.
Fitted with:2 CEE 32A, 5p, 400V
3 french/belg. standard 16A, 2p+E, 230V.
Fusing:1 RCD 63A, 4p, 0.03A
2 MCB′s 32A, 3p+N, C, 10KA
3 MCB′s 16A, 1p+N, C, 10 KA.
Pre-fuse max:63A.
InA :44A.
RDF:0.55.
Connection/feeder cable:for 2 cable up to 5 x 25mm2.
Enclosure size:520 x 225 mm (H x W).
Protection type IP44.
pre-wired for installation.
hinged to the side.
enclosure and insert made of AMAPLAST.
fusing behind a transparent cover.

Mennekes AMAXX receptacle combination 940744
Product Name:AMAXX? receptacle combination
Part No.:940744.
Fitted with:1 CEE 16A, 5p, 400V
2 french/belg. standard 16A, 2p+E, 230V
1 CEE 16A, 2p, 20-25V.
Fusing:1 RCD 40A, 4p, 0.03A
1 MCB 16A, 3p+N, C
1 MCB 16A, 1p+N, C
1 single phase transformer 160VA, 230V/24V
1 MCB 6A, 2p, C
1 MCB 4A, 1p+N, C.
Pre-fuse max:100A.
InA :26A.
RDF:0.6.
Connection/feeder cable:for 2 cable up to 5 x 25mm2.
Enclosure size:520 x 225 mm (H x W).
Protection type IP44.
pre-wired for installation.
hinged to the side.
enclosure and insert made of AMAPLAST.
fusing behind a transparent cover.

Mennekes AMAXX receptacle combination 941445
Product Name:AMAXX? receptacle combination
Part No.:941445.
Fitted with:1 CEE 32A, 5p, 400V
2 french/belg. standard 16A, 2p+E, 230V
1 CEE 16A, 2p, 20-25V.
Fusing:1 RCD 40A, 4p, 0.03A
1 MCB 32A, 3p+N, C
2 MCB′s 16A, 1p+N, C
1 single phase transformer 160VA, 230V/24V
1 MCB 6A, 2p, C
1 MCB 4A, 1p+N, C.
Pre-fuse max:40A.
InA :32A.
RDF:0.6.
Connection/feeder cable:for 1 cable up to 5 x 16mm2.
Enclosure size:520 x 225 mm (H x W).
Protection type IP44.
pre-wired for installation.
hinged to the side.
enclosure and insert made of AMAPLAST.
fusing behind a transparent cover.

Mennekes AMAXX receptacle combination 942552
Product Name:AMAXX? receptacle combination
Part No.:942552.
Fitted with:1 CEE 32A, 5p, 400V
1 CEE 16A, 5p, 400V
2 french/belg. standard 16A, 2p+E, 230V
2 Cepex data port sockets RJ45, 2 fold cat.6 8/8.
Fusing:1 RCD 40A, 4p, 0.03A
1 MCB 32A, 3p+N, C
1 MCB 16A, 3p+N, C
2 MCB′s 16A, 1p+N, C.
Pre-fuse max:40A.
InA :38A.
RDF:0.6.
Connection/feeder cable:for 1 cable up to 5 x 25mm2.
Enclosure size:520 x 225 mm (H x W).
Protection type IP44.
pre-wired for installation.
hinged to the side.
enclosure and insert made of AMAPLAST.
fusing behind a transparent cover.

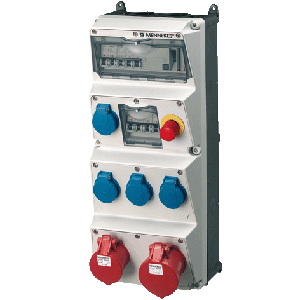

Mennekes AMAXX receptacle combination 943510
Product Name:AMAXX? receptacle combination
Part No.:943510.
Fitted with:4 french/belg. standard 16A, 2p+E, 230V.
Fusing:1 RCD 40A, 4p, 0.03A
1 MCB 32A, 3p+N, C
1 MCB 16A, 3p+N, C
1 MCB 16A, 1p+N, C
1 off button.
Pre-fuse max:40A.
InA :38A.
RDF:0.45.
Connection/feeder cable:for 2 cable up to 5 x 25mm2.
Enclosure size:520 x 225 mm (H x W).
Protection type IP44.
pre-wired for installation.
hinged to the side.
enclosure and insert made of AMAPLAST.
fusing behind a transparent cover.

Mennekes AMAXX receptacle combination 950025
Product Name:AMAXX? receptacle combination
Part No.:950025.
Fitted with:2 CEE 32A, 4p, 400V
2 CEE 16A, 4p, 400V
3 french/belg. standard 16A, 2p+E, 230V.
Fusing:1 RCD 63A, 4p, 0.03A
2 MCB′s 32A, 3p, C
2 MCB′s 16A, 3p, C
1 MCB 16A, 1p+N, C
Pre-fuse max:63A.
InA :54A.
RDF:0.4.
Connection/feeder cable:for 2 cable up to 5 x 25mm2.
Enclosure size:650 x 225 mm (H x W).
Protection type IP44.
pre-wired for installation.
hinged to the side.
enclosure and insert made of AMAPLAST.
fusing behind a transparent cover.

Mennekes AMAXX receptacle combination 952082
Product Name:AMAXX? receptacle combination
Part No.:952082.
Fitted with:1 CEE 63A, 5p, 400V DUO switched and interlock
1 CEE 32A, 5p, 400V
1 CEE 16A, 5p, 400V
2 french/belg. standard 16A, 2p+E, 230V.
Fusing:1 RCD 63A, 4p, 0.03A
1 MCB 32A, 3p+N, C
1 MCB 16A, 3p+N, C
1 MCB 16A, 1p+N, C.
Pre-fuse max:63A.
InA :63A.
RDF:0.75.
Connection/feeder cable:for 2 cable up to 5 x 25mm2.
Enclosure size:650 x 225 mm (H x W).
Protection type IP44.
pre-wired for installation.
hinged to the side.
enclosure and insert made of AMAPLAST.
fusing behind a transparent cover.

Mennekes AMAXX receptacle combination 960018
Product Name:AMAXX? receptacle combination
Part No.:960018.
Fitted with:1 CEE 16A, 5p, 400V
3 french/belg. standard 16A, 2p+E, 230V.
Fusing:1 RCD 40A, 4p, 0.03A.
Pre-fuse max:16A.
InA :16A.
RDF:1.
Connection/feeder cable:for 1 cable up to 5 x 10mm2.
Enclosure size:650 x 225 mm (H x W).
Protection type IP44.
pre-wired for installation.
enclosure and insert made of AMAPLAST.
fusing behind a transparent cover.

Mennekes AMAXX receptacle combination 960219
Product Name:AMAXX? receptacle combination
Part No.:960219.
Fitted with:3 swiss standard type 23, 16A, 3p, 230V.
Fusing:1 RCD 40A, 4p, 0.03A.
3 MCB′s 16A, 1p, C.
Connection/feeder cable:for 1 cable up to 5 x 10mm2.
Enclosure size:650 x 225 mm (H x W).
Protection type IP44.
pre-wired for installation.
enclosure and insert made of AMAPLAST.
fusing behind a transparent cover.

Mennekes AMAXX receptacle combination 922933
Product Name:AMAXX? receptacle combination
Part No.:922933.
Fitted with:1 CEE 16A, 3p, 230V
2 swiss standard type 23, 16A, 3p, 230V.
Fusing:1 RCD 40A, 4p, 0.03A
1 MCB 16A, 1p, C
2 MCB′s 16A, 1p, C.
Connection/feeder cable:for 1 cable up to 5 x 10mm2.
Enclosure size:260 x 225 mm (H x W).
Protection type IP44.
pre-wired for installation.
hinged to the side.
enclosure and insert made of AMAPLAST.
fusing behind a transparent cover.

Mennekes AMAXX receptacle combination 910223
Product Name:AMAXX? receptacle combination
Part No.:910223.
Fitted with:1 CEE 16A, 5p, 400V
1 swiss standard type 25, 16A, 5p, 400V
1 swiss standard type 23, 16A, 3p, 230V .
Connection/feeder cable:for 1 cable up to 5 x 10mm2.
Enclosure size:130 x 225 mm (H x W).
Protection type IP44.
pre-wired for installation.
enclosure and insert made of AMAPLAST.
