Mennekes AMAXX receptacle combination 920027
Product Name:AMAXX? receptacle combination
Part No.:920027.
Fitted with:4 CEE 16A, 5p, 400V.
Connection/feeder cable:for 1 cable up to 5 x 10 mm2.
Enclosure size:260 x 225 mm (H x W).
Protection type IP44.
pre-wired for installation.
hinged to the side.
enclosure and insert made of AMAPLAST.

Mennekes AMAXXs receptacle combination 920015
Product Name:AMAXX?s receptacle combination
Part No.:920015.
Fitted with:1 CEE 32A, 5p, 400V
2 SCHUKO? 16A, 230V.
Fusing:1 RCD 40A, 4p, 0.03A
1 MCB 32A, 3p, C
2 MCB′s 16A, 1p, C.
Pre-fuse max.:40A.
InA:36A.
RDF:0.75.
Connection/feeder cable:for 1cable up to 5 x 10 mm2.
Enclosure size:260 x 225 mm (H x W).
Protection type IP44.
pre-wired for installation.
hinged to the side.
enclosure and insert made of AMAPLAST.
fusing behind a transparent cover.

Mennekes AMAXXs receptacle combination 960012
Product Name:AMAXX?s receptacle combination
Part No.:960012.
Fitted with:1 CEE 32A, 5p, 400V
2 SCHUKO? 16A, 230V.
Fusing:1 RCD 40A, 4p, 0.03A
1 MCB 32A, 3p, C
1 MCB′s 16A, 1p, C.
Pre-fuse max.:40A.
InA:40A.
RDF:1.
Connection/feeder cable:for 1cable up to 5 x 10 mm2.
Enclosure size:650 x 112.5 mm (H x W).
Protection type IP44.
pre-wired for installation.
enclosure and insert made of AMAPLAST.
fusing behind a transparent cover.

Mennekes AMAXXs receptacle combination 920013
Product Name:AMAXX?s receptacle combination
Part No.:920013.
Fitted with:1 CEE 32A, 5p, 400V
2 SCHUKO? 16A, 230V.
Fusing:1 RCD 40A, 4p, 0.03A
2 MCB′s 16A, 1p, C.
Pre-fuse max.:32A.
InA:32A.
RDF:1.
Connection/feeder cable:for 1cable up to 5 x 10 mm2.
Enclosure size:260 x 225 mm (H x W).
Protection type IP44.
pre-wired for installation.
hinged to the side.
enclosure and insert made of AMAPLAST.
fusing behind a transparent cover.

Mennekes AMAXX receptacle combination 920012
Product Name:AMAXX? receptacle combination
Part No.:920012.
Fitted with:1 CEE 32A, 5p, 400V
2 SCHUKO? 16A, 230V.
Fusing:1 MCB 32A, 3p, D
2 MCB′s 16A, 1p, C.
Pre-fuse max.:63A.
InA:48A.
RDF:1.
Connection/feeder cable:for 1cable up to 5 x 10 mm2.
Enclosure size:260 x 225 mm (H x W).
Protection type IP44.
pre-wired for installation.
hinged to the side.
enclosure and insert made of AMAPLAST.
fusing behind a transparent cover.

Mennekes AMAXX receptacle combination 920011
Product Name:AMAXX? receptacle combination
Part No.:920011.
Fitted with:1 CEE 32A, 5p, 400V
2 SCHUKO? 16A, 230V.
Fusing:1 MCB 32A, 3p, C
2 MCB′s 16A, 1p, C.
Pre-fuse max.:63A.
InA:48A.
RDF:1.
Connection/feeder cable:for 1cable up to 5 x 10 mm2.
Enclosure size:260 x 225 mm (H x W).
Protection type IP44.
pre-wired for installation.
hinged to the side.
enclosure and insert made of AMAPLAST.
fusing behind a transparent cover.

Mennekes AMAXX receptacle combination 920010
Product Name:AMAXX? receptacle combination
Part No.:920010.
Fitted with:1 CEE 32A, 5p, 400V
2 SCHUKO? 16A, 230V.
Fusing:1 Neozed D02, 3p
1 Neozed D01, 1p.
Pre-fuse max.:63A.
InA:42A .
RDF:0.8.
Connection/feeder cable:for 1cable up to 5 x 10 mm2.
Enclosure size:260 x 225 mm (H x W).
Protection type IP44.
pre-wired for installation.
hinged to the side.
enclosure and insert made of AMAPLAST.
fusing behind a transparent cover.

Mennekes AMAXXs receptacle combination 960013
Product Name:AMAXX?s receptacle combination
Part No.:960013.
Fitted with:1 CEE 32A, 5p, 400V
3 SCHUKO? 16A, 230V.
Fusing:1 MCB 32A, 3p, C
1 MCB 16A, 1p, C.
Pre-fuse max.:63A.
InA:48A.
RDF:1 .
Connection/feeder cable:for 1cable up to 5 x 10 mm2.
Enclosure size:650 x 112.5 mm (H x W).
Protection type IP44.
pre-wired for installation.
enclosure and insert made of AMAPLAST.
fusing behind a transparent cover.

Mennekes AMAXXs receptacle combination 920022
Product Name:AMAXX?s receptacle combination
Part No.:920022.
Fitted with:1 CEE 32A, 5p, 400V
1 CEE 16A, 5p, 400V.
Fusing:1 RCD 40A, 4p, 0.03A
1 MCB 32A, 3p, C
1 MCB 16A, 3p, C.
Pre-fuse max.:40A.
InA:34A.
RDF:0.7.
Connection/feeder cable:for 1cable up to 5 x 10 mm2.
Enclosure size:260 x 225 mm (H x W).
Protection type IP44.
pre-wired for installation.
hinged to the side.
enclosure and insert made of AMAPLAST.
fusing behind a transparent cover.

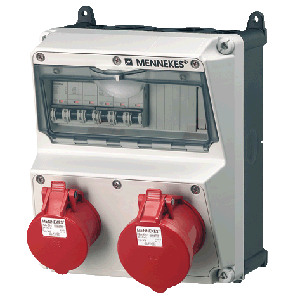

Mennekes AMAXXs receptacle combination 920021
Product Name:AMAXX?s receptacle combination
Part No.:920021.
Fitted with:1 CEE 32A, 5p, 400V
1 CEE 16A, 5p, 400V.
Fusing:1 MCB 32A, 3p, C
1 MCB 16A, 3p, C.
Pre-fuse max.:63A.
InA:46A.
RDF:0.95.
Connection/feeder cable:for 2 cable up to 5 x 10 mm2.
Enclosure size:260 x 225 mm (H x W).
Protection type IP44.
pre-wired for installation.
hinged to the side.
enclosure and insert made of AMAPLAST.
fusing behind a transparent cover.

Mennekes AMAXXs receptacle combination 960009
Product Name:AMAXX?s receptacle combination
Part No.:960009.
Fitted with:1 CEE 32A, 5p, 400V
1 CEE 16A, 5p, 400V
1 SCHUKO? 16A, 230V.
Fusing:1 RCD 40A, 4p, 0.03A
1 MCB 16A, 3p, C
1 MCB 16A, 1p, C.
Pre-fuse max.:32A.
InA:32A.
RDF:1 .
Connection/feeder cable:for 1 cable up to 5 x 10 mm2.
Enclosure size:650 x 112.5 mm (H x W).
Protection type IP44.
pre-wired for installation.
enclosure and insert made of AMAPLAST.
fusing behind a transparent cover.

Mennekes AMAXXs receptacle combination 960010
Product Name:AMAXX?s receptacle combination
Part No.:960010.
Fitted with:1 CEE 32A, 5p, 400V
1 CEE 16A, 5p, 400V
1 SCHUKO? 16A, 230V.
Fusing:1 MCB 32A, 3p, C
1 MCB 16A, 3p, C
1 MCB 16A, 1p, C.
Pre-fuse max.:63A.
InA:61A.
RDF:0.95.
Connection/feeder cable:for 1 cable up to 5 x 10 mm2.
Enclosure size:650 x 112.5 mm (H x W).
Protection type IP44.
pre-wired for installation.
enclosure and insert made of AMAPLAST.
fusing behind a transparent cover.
