Mennekes AMAXX receptacle combination 920211
Product Name:AMAXX? receptacle combination
Part No.:920211.
Fitted with:3 danish standard 13A, 2p+E, 230V.
Fusing:1 RCD 40A, 4p, 0.03A
3 MCB′s 13A, 1p, C.
Pre-fuse max.:100A.
InA:13A.
RDF:1.
Connection/feeder cable:for 1 cable up to 5 x 10mm2.
Enclosure size:260 x 225 mm (H x W).
Protection type IP44.
pre-wired for installation.
hinged to the side.
enclosure and insert made of AMAPLAST.
fusing behind a transparent cover.

Mennekes AMAXX receptacle combination 920080
Product Name:AMAXX? receptacle combination
Part No.:920080.
Fitted with:1 CEE 16A, 5p, 400V
2 SCHUKO? 16A, 230V.
Fusing:1 AC/DC sensitive RCD 40A, 4p, 0.03A
1 MCB 16A, 3p, C
2 MCB′s 16A, 1p, C.
Pre-fuse max.:63A.
InA:32A.
RDF:1.
Connection/feeder cable:for 1 cable up to 5 x 10mm2.
Enclosure size:260 x 225 mm (H x W).
Protection type IP44.
pre-wired for installation.
hinged to the side.
enclosure and insert made of AMAPLAST.
fusing behind a transparent cover.

Mennekes AMAXX receptacle combination 920081
Product Name:AMAXX? receptacle combination
Part No.:920081.
Fitted with:1 CEE 32A, 5p, 400V
2 SCHUKO? 16A, 230V.
Fusing:1 AC/DC sensitive RCD 40A, 4p, 0.03A
1 MCB 32A, 3p, C
2 MCB′s 16A, 1p, C.
Pre-fuse max.:40A.
InA:38A.
RDF:0.8.
Connection/feeder cable:for 1 cable up to 5 x 10mm2.
Enclosure size:260 x 225 mm (H x W).
Protection type IP44.
pre-wired for installation.
hinged to the side.
enclosure and insert made of AMAPLAST.
fusing behind a transparent cover.

Mennekes AMAXX receptacle combination 930037
Product Name:AMAXX? receptacle combination
Part No.:930037.
Fitted with:4 french/belg. standard 16A, 2p+E, 230V.
Fusing:1 RCD 40A, 4p, 0.03A
4 MCB′s 16A, 1p+N, C
1 off button
1 indicator light.
Pre-fuse max.:100A.
InA:30A.
RDF:0.95.
Connection/feeder cable:for 1 cable up to 5 x 25mm2.
Enclosure size:390 x 225 mm (H x W).
Protection type IP44.
pre-wired for installation.
hinged to the side.
enclosure and insert made of AMAPLAST.
fusing behind a transparent cover.

Mennekes AMAXX receptacle combination 930036
Product Name:AMAXX? receptacle combination
Part No.:930036.
Fitted with:2 CEE 16A, 5p, 400V.
2 french/belg. standard 16A, 2p+E, 230V
Fusing:1 RCD 40A, 4p, 0.03A
2 MCB′s 16A, 3p+N, C
2 MCB′s 16A, 1p+N, C.
Pre-fuse max.:40A.
InA:31A.
RDF:0.65.
Connection/feeder cable:for 2 cable up to 5 x 25mm2.
Enclosure size:390 x 225 mm (H x W).
Protection type IP44.
pre-wired for installation.
hinged to the side.
enclosure and insert made of AMAPLAST.
fusing behind a transparent cover.

Mennekes AMAXX receptacle combination 930038
Product Name:AMAXX? receptacle combination
Part No.:930038.
Fitted with:1 CEE 32A, 5p, 400V
3 french/belg. standard 16A, 2p+E, 230V.
Fusing:1 RCD 40A, 4p, 0.03A
1 MCB 32A, 3p+N, C
1 MCB 16A, 1p+N, C
1 off button
1 indicator light.
Pre-fuse max.:40A.
InA:40A.
RDF:0.85.
Connection/feeder cable:for 1 cable up to 5 x 25mm2.
Enclosure size:390 x 225 mm (H x W).
Protection type IP44.
pre-wired for installation.
hinged to the side.
enclosure and insert made of AMAPLAST.
fusing behind a transparent cover.

Mennekes AMAXX receptacle combination 930035
Product Name:AMAXX? receptacle combination
Part No.:930035.
Fitted with:1 CEE 32A, 5p, 400V
1 CEE 16A, 5p, 400V
2 french/belg. standard 16A, 2p+E, 230V.
Fusing:1 RCD 40A, 4p, 0.03A
1 MCB 32A, 3p+N, C
1 MCB 16A, 3p+N, C
2 MCB′s 16A, 1p+N, C.
Pre-fuse max.:40A.
InA:38A.
RDF:0.6.
Connection/feeder cable:for 1 cable up to 5 x 25mm2.
Enclosure size:390 x 225 mm (H x W).
Protection type IP44.
pre-wired for installation.
hinged to the side.
enclosure and insert made of AMAPLAST.
fusing behind a transparent cover.

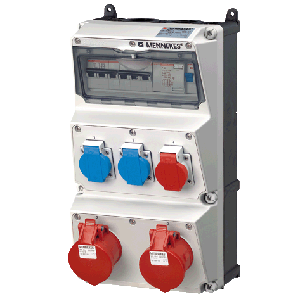

Mennekes AMAXX receptacle combination 930231
Product Name:AMAXX? receptacle combination
Part No.:930231.
Fitted with:2 CEE 16A, 5p, 400V
1 swiss standard type 25, 16A, 5p, 400V
2 swiss standard type 23, 16A, 3p, 230V.
Fusing:1 RCD 40A, 4p, 0.03 A
2 MCB′s 16A, 3p, C.
Pre-fuse max.:63A.
InA:29A.
RDF:0.45.
Connection/feeder cable:for 2 cable up to 5 x 25mm2.
Enclosure size:390 x 225 mm (H x W).
Protection type IP44.
pre-wired for installation.
hinged to the side.
enclosure and insert made of AMAPLAST.
fusing behind a transparent cover.

Mennekes AMAXX receptacle combination 930299
Product Name:AMAXX? receptacle combination
Part No.:930299.
Fitted with:1 CEE 16A, 5p, 400V
1 swiss standard type 25, 16A, 5p, 400V
3 swiss standard type 23, 16A, 3p, 230V.
Fusing:1 RCD 40A, 4p, 0.03 A
2 MCB′s 16A, 3p, C.
Pre-fuse max.:100A.
InA:29A.
RDF:0.8.
Connection/feeder cable:for 2 cable up to 5 x 25mm2.
Enclosure size:390 x 225 mm (H x W).
Protection type IP44.
pre-wired for installation.
hinged to the side.
enclosure and insert made of AMAPLAST.
fusing behind a transparent cover.

Mennekes AMAXX receptacle combination 930298
Product Name:AMAXX? receptacle combination
Part No.:930298.
Fitted with:1 CEE 32A, 5p, 400V
1 CEE 16A, 5p, 400V
1 swiss standard type 25, 16A, 5p, 400V
2 swiss standard type 23, 16A, 3p, 230V.
Fusing:1 RCD 40A, 4p, 0.03 A
2 MCB′s 16A, 3p, C.
Pre-fuse max.:32A.
InA:32A.
RDF:0.4.
Connection/feeder cable:for 2 cable up to 5 x 25mm2.
Enclosure size:390 x 225 mm (H x W).
Protection type IP44.
pre-wired for installation.
hinged to the side.
enclosure and insert made of AMAPLAST.
fusing behind a transparent cover.

Mennekes AMAXX receptacle combination 940080
Product Name:AMAXX? receptacle combination
Part No.:940080.
Fitted with:1 CEE 32A, 5p, 400V
1 CEE 16A, 5p, 400V
3 SCHUKO? 16A, 230V.
Fusing:1 AC/DC sensitive RCD 63A, 4p, 0.03A
1 MCB 32A, 3p, C
1 MCB 16A, 3p, C
3 MCB′s 16A, 1p, C.
Pre-fuse max.:100A.
InA:48A.
RDF:0.75.
Connection/feeder cable:for 2 cable up to 5 x 25mm2.
Enclosure size:520 x 225 mm (H x W).
Protection type IP44.
pre-wired for installation.
hinged to the side.
enclosure and insert made of AMAPLAST.
fusing behind a transparent cover.

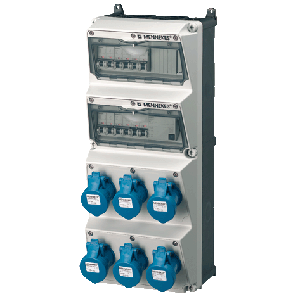

Mennekes AMAXX receptacle combination 940024
Product Name:AMAXX? receptacle combination
Part No.:940024.
Fitted with:6 CEE 16A, 3p, 230V.
Fusing:1 RCD 40A, 4p, 0.03A
6 MCB′s 16A, 1p+N, C.
Pre-fuse max.:100A.
InA:24A.
RDF:0.75.
Connection/feeder cable:for 2 cable up to 5 x 25mm2.
Enclosure size:520 x 225 mm (H x W).
Protection type IP44.
pre-wired for installation.
hinged to the side.
enclosure and insert made of AMAPLAST.
fusing behind a transparent cover.
