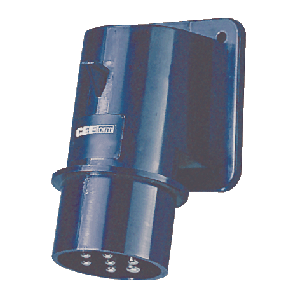

Mennekes Panel mounted inlet 751
Product Name:Panel mounted inlet
Part No.751.
Ampere :32A.
Poles:7P.
Voltage:230V.
Earth position:9h.
Hertz:50-60 Hz.
Connection technology:Screw terminals.
Contact:nickel plated contacts, highly heat resistant contact carrier.
Protection type:IP44.
screw terminals.
highly heat resistant contact carrier.
nickel plated contacts.

Mennekes Panel mounted inlet 750
Product Name:Panel mounted inlet
Part No.750.
Ampere :16A.
Poles:7P.
Voltage:400V.
Earth position:6h.
Hertz:50-60 Hz.
Connection technology:Screw terminals.
Contact:nickel plated contacts, highly heat resistant contact carrier.
Protection type:IP44.
screw terminals.
highly heat resistant contact carrier.
nickel plated contacts.

Mennekes Panel mounted inlet 752
Product Name:Panel mounted inlet
Part No.752.
Ampere :32A.
Poles:7P.
Voltage:400V.
Earth position:6h.
Hertz:50-60 Hz.
Connection technology:Screw terminals.
Contact:nickel plated contacts, highly heat resistant contact carrier.
Protection type:IP44.
screw terminals.
highly heat resistant contact carrier.
nickel plated contacts.

Mennekes Panel mounted inlet 1075
Product Name:Panel mounted inlet
Part No.1075.
Ampere :16A.
Poles:7P.
Voltage:500V.
Earth position:7h.
Hertz:50-60 Hz.
Connection technology:Screw terminals.
Contact:nickel plated contacts, highly heat resistant contact carrier.
Protection type:IP44.
screw terminals.
highly heat resistant contact carrier.
nickel plated contacts.

Mennekes Panel mounted inlet 1080
Product Name:Panel mounted inlet
Part No.1080.
Ampere :32A.
Poles:7P.
Voltage:500V.
Earth position:7h.
Hertz:50-60 Hz.
Connection technology:Screw terminals.
Contact:nickel plated contacts, highly heat resistant contact carrier.
Protection type:IP44.
screw terminals.
highly heat resistant contact carrier.
nickel plated contacts.

Mennekes Panel mounted inlet 3914
Product Name:Panel mounted inlet
Part No.3914.
Ampere :16A.
Poles:7P.
Voltage:400V.
Earth position:6h.
Hertz:50-60 Hz.
Connection technology:Screw terminals.
Contact:nickel plated contacts, highly heat resistant contact carrier.
Protection type:IP67.
screw terminals.
highly heat resistant contact carrier.
nickel plated contacts.
with protective cap.

Mennekes Panel mounted inlet 3915
Product Name:Panel mounted inlet
Part No.3915.
Ampere :32A.
Poles:7P.
Voltage:400V.
Earth position:6h.
Hertz:50-60 Hz.
Connection technology:Screw terminals.
Contact:nickel plated contacts, highly heat resistant contact carrier.
Protection type:IP67.
screw terminals.
highly heat resistant contact carrier.
nickel plated contacts.
with protective cap.

Mennekes Connector AM-TOP 745
Product Name:Connector AM-TOP?
Part No.745.
Ampere :16A.
Poles:7P.
Voltage:230V.
Earth position:9h.
Hertz:50-60 Hz.
Connection technology:Screw terminals.
Contact:nickel plated contacts, highly heat resistant contact carrier.
Protection type:IP44.
screw terminals.
with highly heat resistant contact carrier.
nickel plated contacts.
single part body.
cable gland and sealing.
strain relief and protection against kinking.

Mennekes Connector AM-TOP 747
Product Name:Connector AM-TOP?
Part No.747.
Ampere :32A.
Poles:7P.
Voltage:230V.
Earth position:9h.
Hertz:50-60 Hz.
Connection technology:Screw terminals.
Contact:nickel plated contacts, highly heat resistant contact carrier.
Protection type:IP44.
screw terminals.
with highly heat resistant contact carrier.
nickel plated contacts.
single part body.
cable gland and sealing.
strain relief and protection against kinking.

Mennekes Connector AM-TOP 746
Product Name:Connector AM-TOP?
Part No.746.
Ampere :16A.
Poles:7P.
Voltage:400V.
Earth position:6h.
Hertz:50-60 Hz.
Connection technology:Screw terminals.
Contact:nickel plated contacts, highly heat resistant contact carrier.
Protection type:IP44.
screw terminals.
with highly heat resistant contact carrier.
nickel plated contacts.
single part body.
cable gland and sealing.
strain relief and protection against kinking.

Mennekes Connector AM-TOP 748
Product Name:Connector AM-TOP?
Part No.748.
Ampere :32A.
Poles:7P.
Voltage:400V.
Earth position:6h.
Hertz:50-60 Hz.
Connection technology:Screw terminals.
Contact:nickel plated contacts, highly heat resistant contact carrier.
Protection type:IP44.
screw terminals.
with highly heat resistant contact carrier.
nickel plated contacts.
single part body.
cable gland and sealing.
strain relief and protection against kinking.

Mennekes Connector AM-TOP 1065
Product Name:Connector AM-TOP?
Part No.1065.
Ampere :16A .
Poles:7P.
Voltage:500V.
Earth position:7h.
Hertz:50-60 Hz.
Connection technology:Screw terminals.
Contact:nickel plated contacts, highly heat resistant contact carrier.
Protection type:IP44.
screw terminals.
with highly heat resistant contact carrier.
nickel plated contacts.
single part body.
cable gland and sealing.
strain relief and protection against kinking.
