Mennekes Panel mounted inlet 3665
Product Name:Panel mounted inlet
Part No.:3665.
Ampere:125A.
Poles:3p
Voltage:230V.
Earth position:6h.
Hertz 50-60Hz.
Connection technology:screw terminals.
Contact:nickel plated contacts, highly heat resistant contact carrier.
Protection type IP67.
screw terminals.
with highly heat resistant contact carrier.
nickel plated contacts.

Mennekes Panel mounted inlet 3413
Product Name:Panel mounted inlet
Part No.:3413.
Ampere:125A.
Poles:4p
Voltage:230V.
Earth position:9h.
Hertz 50-60Hz.
Connection technology:screw terminals.
Contact:nickel plated contacts, highly heat resistant contact carrier.
Protection type IP67.
screw terminals.
with highly heat resistant contact carrier.
nickel plated contacts.

Mennekes Panel mounted inlet 3656
Product Name:Panel mounted inlet
Part No.:3656.
Ampere:63A.
Poles:4p
Voltage:400V.
Earth position:6h.
Hertz 50-60Hz.
Connection technology:screw terminals.
Contact:nickel plated contacts, highly heat resistant contact carrier.
Protection type IP67.
screw terminals.
with highly heat resistant contact carrier.
nickel plated contacts.
a retaining nose to hold the hinged lid of the connector must be provided by the customer in order to ensure satisfactory locking.

Mennekes Panel mounted inlet 3658
Product Name:Panel mounted inlet
Part No.:3658.
Ampere:63A.
Poles:5p
Voltage:400V.
Earth position:6h.
Hertz 50-60Hz.
Connection technology:screw terminals.
Contact:nickel plated contacts, highly heat resistant contact carrier.
Protection type IP67.
screw terminals.
with highly heat resistant contact carrier.
nickel plated contacts.
a retaining nose to hold the hinged lid of the connector must be provided by the customer in order to ensure satisfactory locking.

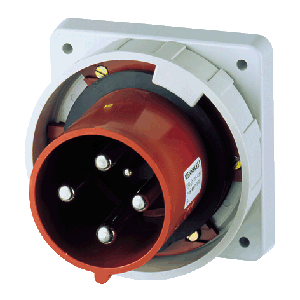

Mennekes Panel mounted inlet 3583
Product Name:Panel mounted inlet
Part No.:3583.
Ampere:125A.
Poles:4p
Voltage:400V.
Earth position:6h.
Hertz 50-60Hz.
Connection technology:screw terminals.
Contact:nickel plated contacts, highly heat resistant contact carrier.
screw terminals.
with highly heat resistant contact carrier.
nickel plated contacts.

Mennekes Panel mounted inlet 1983
Product Name:Panel mounted inlet
Part No.:1983.
Ampere:125A.
Poles:5p
Voltage:400V.
Earth position:6h.
Hertz 50-60Hz.
Connection technology:screw terminals.
Contact:nickel plated contacts, highly heat resistant contact carrier.
Protection type IP67.
screw terminals.
with highly heat resistant contact carrier.
nickel plated contacts.

Mennekes Panel mounted inlet 3657
Product Name:Panel mounted inlet
Part No.:3657.
Ampere:63A.
Poles:4p
Voltage:500V.
Earth position:7h.
Hertz 50-60Hz.
Connection technology:screw terminals.
Contact:nickel plated contacts, highly heat resistant contact carrier.
Protection type IP67.
screw terminals.
with highly heat resistant contact carrier.
nickel plated contacts.
a retaining nose to hold the hinged lid of the connector must be provided by the customer in order to ensure satisfactory locking.

Mennekes Panel mounted inlet 3600
Product Name:Panel mounted inlet
Part No.:3600.
Ampere:125A.
Poles:4p
Voltage:500V.
Earth position:7h.
Hertz 50-60Hz.
Connection technology:screw terminals.
Contact:nickel plated contacts, highly heat resistant contact carrier.
Protection type IP67.
screw terminals.
with highly heat resistant contact carrier.
nickel plated contacts.

Mennekes Phase inverter plug ProTOP 3322
Product Name:Phase inverter plug ProTOP
Part No.:3322.
Ampere:32A.
Poles:5p
Voltage:400V.
Earth position:6h.
Hertz 50-60Hz.
Connection technology:screw terminals.
Contact:standard.
Protection type IP44.
screw terminals.
cable gland and sealing.
strain relief and protection against kinking.
enclosure with thread lock and safety slide.

Mennekes Phase inverter plug AM-TOP 338
Product Name:Phase inverter plug AM-TOP?
Part No.:338.
Ampere:16A.
Poles:4p
Voltage:230V.
Earth position:9h.
Hertz 50-60Hz.
Connection technology:screw terminals.
Contact:standard.
Protection type IP44.
screw terminals.
single part body.
cable gland and sealing.
strain relief and protection against kinking.

Mennekes Phase inverter plug AM-TOP 318
Product Name:Phase inverter plug AM-TOP?
Part No.:318.
Ampere:16A.
Poles:5p
Voltage:230V.
Earth position:9h.
Hertz 50-60Hz.
Connection technology:screw terminals.
Contact:standard.
Protection type IP44.
screw terminals.
single part body.
cable gland and sealing.
strain relief and protection against kinking.

Mennekes Phase inverter plug AM-TOP 396
Product Name:Phase inverter plug AM-TOP?
Part No.:396.
Ampere:32A.
Poles:4p
Voltage:230V.
Earth position:9h.
Hertz 50-60Hz.
Connection technology:screw terminals.
Contact:standard.
Protection type IP44.
screw terminals.
single part body.
cable gland and sealing.
strain relief and protection against kinking.
