Mennekes Cepex Design and panel mounted switched and interlocked

Cepex Design and panel mounted switched and interlocked

Mennekes Cepex panel mounted receptacle 4273
Product Name:Cepex panel mounted receptacle
Part No.:4273.
Ampere:16A.
Poles:4p.
Voltage:400V.
Earth position: 6h.
Hertz 50-60Hz.
Protection type IP44.
screw terminals.
with labelling field.
suitable for installation in cable ducts and columns.

Cepex Design and panel mounted switched and interlocked

Mennekes Cepex panel mounted receptacle 4237
Product Name:Cepex panel mounted receptacle
Part No.:4237.
Ampere:16A.
Poles:5p.
Voltage:400V.
Earth position: 6h.
Hertz 50-60Hz.
Protection type IP44.
screw terminals.
with labelling field.
suitable for installation in cable ducts and columns.

Cepex Design and panel mounted switched and interlocked

Mennekes Cepex panel mounted receptacle 4275
Product Name:Cepex panel mounted receptacle
Part No.:4275.
Ampere:32A.
Poles:4p.
Voltage:400V.
Earth position: 6h.
Hertz 50-60Hz.
Protection type IP44.
screw terminals.
with labelling field.
suitable for installation in cable ducts and columns.

Cepex Design and panel mounted switched and interlocked

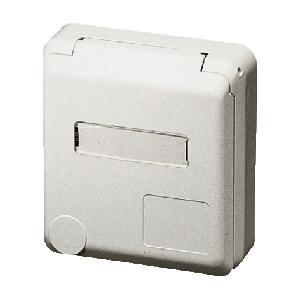

Mennekes Cepex panel mounted receptacle 4238
Product Name:Cepex panel mounted receptacle
Part No.:4238.
Ampere:32A.
Poles:5p.
Voltage:400V.
Earth position: 6h.
Hertz 50-60Hz.
Protection type IP44.
screw terminals.
with labelling field.
suitable for installation in cable ducts and columns.

Cepex Design and panel mounted switched and interlocked

Mennekes Cepex panel mounted receptacle 4210
Product Name:Cepex panel mounted receptacle
Part No.:4210.
Ampere:16A.
Poles:3p.
Voltage:230V.
Earth position: 6h.
Hertz 50-60Hz.
Protection type IP44.
screw terminals.
suitable for installation in cable ducts and columns.
meeting DIN 18032 standards for ball rebound.

Cepex Design and panel mounted switched and interlocked

Mennekes Cepex panel mounted receptacle 4212
Product Name:Cepex panel mounted receptacle
Part No.:4212.
Ampere:32A.
Poles:3p.
Voltage:230V.
Earth position: 6h.
Hertz 50-60Hz.
Protection type IP44.
screw terminals.
suitable for installation in cable ducts and columns.
meeting DIN 18032 standards for ball rebound.

Cepex Design and panel mounted switched and interlocked

Mennekes Cepex panel mounted receptacle 4211
Product Name:Cepex panel mounted receptacle
Part No.:4211.
Ampere:16A.
Poles:5p.
Voltage:400V.
Earth position: 6h.
Hertz 50-60Hz.
Protection type IP44.
screw terminals.
suitable for installation in cable ducts and columns.
meeting DIN 18032 standards for ball rebound.

Cepex Design and panel mounted switched and interlocked

Mennekes Cepex panel mounted receptacle 4230
Product Name:Cepex panel mounted receptacle
Part No.:4230.
Ampere:32A.
Poles:4p.
Voltage:400V.
Earth position: 6h.
Hertz 50-60Hz.
Protection type IP44.
screw terminals.
suitable for installation in cable ducts and columns.
meeting DIN 18032 standards for ball rebound.

Cepex Design and panel mounted switched and interlocked

Mennekes Cepex panel mounted receptacle 4213
Product Name:Cepex panel mounted receptacle
Part No.:4213.
Ampere:32A.
Poles:5p.
Voltage:400V.
Earth position: 6h.
Hertz 50-60Hz.
Protection type IP44.
screw terminals.
suitable for installation in cable ducts and columns.
meeting DIN 18032 standards for ball rebound.

Cepex Design and panel mounted switched and interlocked

Mennekes Cepex panel mounted receptacle 4214
Product Name:Cepex panel mounted receptacle
Part No.:4214.
Ampere:16A.
Poles:3p.
Voltage:230V.
Earth position: 6h.
Hertz 50-60Hz.
Protection type IP44.
screw terminals.
with labelling field.
suitable for installation in cable ducts and columns.

Cepex Design and panel mounted switched and interlocked

Mennekes Cepex panel mounted receptacle 4215
Product Name:Cepex panel mounted receptacle
Part No.:4215.
Ampere:16A.
Poles:5p.
Voltage:400V.
Earth position: 6h.
Hertz 50-60Hz.
Protection type IP44.
screw terminals.
with labelling field.
suitable for installation in cable ducts and columns.

Cepex Design and panel mounted switched and interlocked

Mennekes Cepex panel mounted receptacle 4217
Product Name:Cepex panel mounted receptacle
Part No.:4217.
Ampere:32A.
Poles:5p.
Voltage:400V.
Earth position: 6h.
Hertz 50-60Hz.
Protection type IP44.
screw terminals.
with labelling field.
suitable for installation in cable ducts and columns.
