Mennekes Panel mounted receptacle 1485
Product Name:Panel mounted receptacle
Part No.:1485.
Ampere:16A.
Poles:5p.
Voltage:400V.
Earth position :6h.
Hertz 50-60Hz.
Connection technology:screw terminals.
Contact: standrad.
Protection type IP67.
screw terminals.
20° inclination.
32A receptacles optional fitted with auxiliary contact.

Mennekes Panel mounted receptacle 1503
Product Name:Panel mounted receptacle
Part No.:1503.
Ampere:32A.
Poles:3p.
Voltage:400V.
Earth position :9h.
Hertz 50-60Hz.
Connection technology:screw terminals.
Contact: standrad.
Protection type IP67.
screw terminals.
20° inclination.
32A receptacles optional fitted with auxiliary contact.

Mennekes Panel mounted receptacle 1506
Product Name:Panel mounted receptacle
Part No.:1506.
Ampere:32A.
Poles:4p.
Voltage:400V.
Earth position :6h.
Hertz 50-60Hz.
Connection technology:screw terminals.
Contact: standrad.
Protection type IP67.
screw terminals.
20° inclination.
32A receptacles optional fitted with auxiliary contact.

Mennekes Panel mounted receptacle 1551
Product Name:Panel mounted receptacle
Part No.:1551.
Ampere:32A.
Poles:5p.
Voltage:400V.
Earth position :6h.
Hertz 50-60Hz.
Connection technology:screw terminals.
Contact: standrad.
Protection type IP67.
screw terminals.
20° inclination.
32A receptacles optional fitted with auxiliary contact.

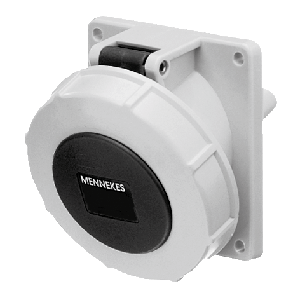

Mennekes Panel mounted receptacle 1480
Product Name:Panel mounted receptacle
Part No.:1480.
Ampere:16A.
Poles:4p.
Voltage:500V.
Earth position :7h.
Hertz 50-60Hz.
Connection technology:screw terminals.
Contact: standrad.
Protection type IP67.
screw terminals.
20° inclination.
32A receptacles optional fitted with auxiliary contact.

Mennekes Panel mounted receptacle 1507
Product Name:Panel mounted receptacle
Part No.:1507.
Ampere:32A.
Poles:4p.
Voltage:500V.
Earth position :7h.
Hertz 50-60Hz.
Connection technology:screw terminals.
Contact: standrad.
Protection type IP67.
screw terminals.
20° inclination.
32A receptacles optional fitted with auxiliary contact.

Mennekes Panel mounted receptacle 1481
Product Name:Panel mounted receptacle
Part No.:1481.
Ampere:16A.
Poles:4p.
Voltage:>50-500V.
Earth position :10h.
Hertz 100-300Hz.
Connection technology:screw terminals.
Contact: standrad.
Protection type IP67.
screw terminals.
20° inclination.
32A receptacles optional fitted with auxiliary contact.

Mennekes Panel mounted receptacle 1567
Product Name:Panel mounted receptacle
Part No.:1567.
Ampere:32A.
Poles:4p.
Voltage:>50-500V.
Earth position :10h.
Hertz 100-300Hz.
Connection technology:screw terminals.
Contact: standrad.
Protection type IP67.
screw terminals.
20° inclination.
32A receptacles optional fitted with auxiliary contact.

Mennekes Panel mounted receptacle 1482
Product Name:Panel mounted receptacle
Part No.:1482.
Ampere:16A.
Poles:4p.
Voltage:>50-500V.
Earth position :2h.
Hertz >300-500Hz.
Connection technology:screw terminals.
Contact: standrad.
Protection type IP67.
screw terminals.
20° inclination.
32A receptacles optional fitted with auxiliary contact.

Mennekes Panel mounted receptacle 1568
Product Name:Panel mounted receptacle
Part No.:1568.
Ampere:32A.
Poles:4p.
Voltage:>50-500V.
Earth position :2h.
Hertz >300-500Hz.
Connection technology:screw terminals.
Contact: standrad.
Protection type IP67.
screw terminals.
20° inclination.
32A receptacles optional fitted with auxiliary contact.

Mennekes Panel mounted receptacle 1274
Product Name:Panel mounted receptacle
Part No.:1274.
Ampere:32A.
Poles:5p.
Voltage:110V.
Earth position :4h.
Hertz 50-60Hz.
Connection technology:screw terminals.
Contact: standrad.
Protection type IP44.
screw terminals.
flange: 75 x 75 mm.
fixing hole spacing: 60 x 60 mm.
straight.
also suitable for installation in cable ducts and columns.

Mennekes Panel mounted receptacle 1275
Product Name:Panel mounted receptacle
Part No.:1275.
Ampere:32A.
Poles:5p.
Voltage:230V.
Earth position :9h.
Hertz 50-60Hz.
Connection technology:screw terminals.
Contact: standrad.
Protection type IP44.
screw terminals.
flange: 75 x 75 mm.
fixing hole spacing: 60 x 60 mm.
straight.
also suitable for installation in cable ducts and columns.
