OMRON CJ1W-(SRM21,CRM21,PRM21) PROFIBUS-DP

PROFIBUS-DP and PROFINET-IO and CompoNet and CompoBus

OMRON CompoBus/S Module CJ1W-SRM21
Brand: OMRON.
Product name: CompoBus/S Module.
Model: CJ1W-SRM21.
Module CJ1W-SRM21 Communications functions: Remote I/O communications.
CompoBus/S CJ1W-SRM21 No. of I/O points: 256 max.(128 inputs and 128 outputs), 128 max.(64 inputs and 64 outputs).

PROFIBUS-DP and PROFINET-IO and CompoNet and CompoBus

OMRON CompoNet Master Module CJ1W-CRM21
Brand: OMRON.
Product name: CompoNet Master Module.
Model: CJ1W-CRM21.
CompoNet Master for CJ1 PLCs
CJ1W-CRM21 Features : Control up to 2560 pionts, 384 nodes with one master
Specifications : Use CRT1 I/O slaves and CRS1 repeater
Enclosure Rating : IP20 equivalent

PROFIBUS-DP and PROFINET-IO and CompoNet and CompoBus

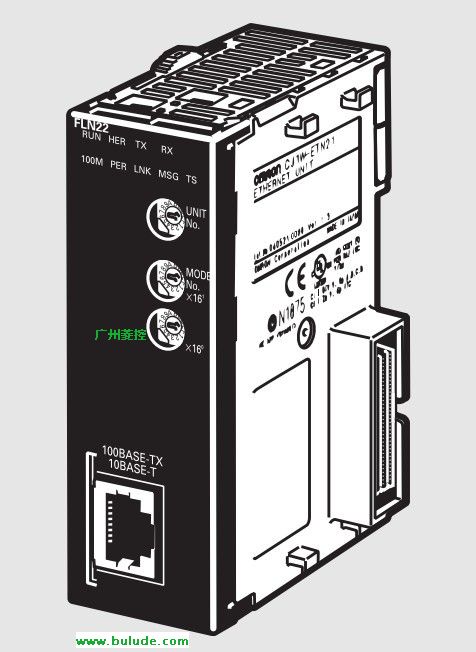

OMRON FL-net Unit CJ1W-FLN22
Brand: OMRON.
Product name: FL-net Unit.
Model: CJ1W-FLN22.
Communications interface: 100Base-TX.
CJ1W-FLN22 Communications functions: With FL-net Ver. 2.0 specifications (OPCN-2)
Data links and message service.

PROFIBUS-DP and PROFINET-IO and CompoNet and CompoBus

OMRON ProfiNET unit CJ1W-PNT21
Brand: OMRON.
Product name: ProfiNET unit.
Model: CJ1W-PNT21.
CJ1W-PRM21 Number of Units that can be mounted : 16 (restrictions may apply for certain PLC types).
Dimensions (WxHxD) : 31 x 90 x 65 mm.
Weight : 100 gram (typical).

PROFIBUS-DP and PROFINET-IO and CompoNet and CompoBus

OMRON Profibus-DP master unit CJ1W-PRM21
Brand: OMRON.
Product name: Profibus-DP master unit.
Model: CJ1W-PRM21.
Master unit provides data exchange, diagnostics and message communications.
Network type : Profibus-DP
CJ1W-PRM21 Rating : 12 Mbps; 1200 m distance; 125 nodes; shielded twisted pair cable; allows 7, 168 words of I/O data per PLL; one RS-485 port

PROFIBUS-DP and PROFINET-IO and CompoNet and CompoBus

OMRON Profibus-DP slave unit CJ1W-PRT21
Brand: OMRON.
Product name: Profibus-DP slave unit.
Model: CJ1W-PRT21.
Network type :
Rating : Max. 180 words of input and output; one RS-485 port
Current consumption : 0.40 A, 5 VDC
