Product Name:Cepex flush mounted receptacle, alpine white
Part No.:4244.
Ampere:16A.
Poles:5p.
Voltage:400V.
Earth 4 Mennekes 4 position: 6h.
Hertz Mennekes 4 50-60Hz. 4
Protection type IP44. Mennekes 4
screw terminals.
with flush mounted installation box.
meeting DIN 18032 standards for ball rebound.

Product Name:Cepex surface mounted duplex socket
Part No.:4281.
Ampere :16A.
Poles:2P.
Voltage:230V.
Shutter:no.
Protection type:IP44.
French/Belgian standard.
screw terminals.
1 x M 20 plugged at top, 2 x M 25 to be cut out at the bottom, 2 x M 20 to be cut out at the back side, for cables 7 up to 13 mm ?.

Product Name:Cepex panel mounted receptacle
Part No.:4247.
Ampere:16A.
Poles:3p.
Voltage:230V.
Earth position: 6h.
Hertz 50-60Hz.
Protection type IP44.
screw terminals.
with labelling field.
suitable for installation in cable ducts and columns.

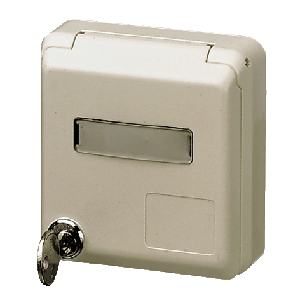

Product Name:Cepex wall mounted receptacle
Part No.:4167.
Ampere:32A.
Poles:3p.
Voltage:230V.
Earth position: 6h.
Hertz 50-60Hz.
Protection type IP44.
screw terminals.
with labelling field.
with safety lock.
two keys.
cannot be dismantled when locked.
on request with identical locks.
cable entry: 1 x M 25 with cable gland at top, 1 x M 25 to be cut out at 4 the bottom, 1 x M 20 to be 4 cut out at the back side, for cables 7 up to 13 mm ?.
